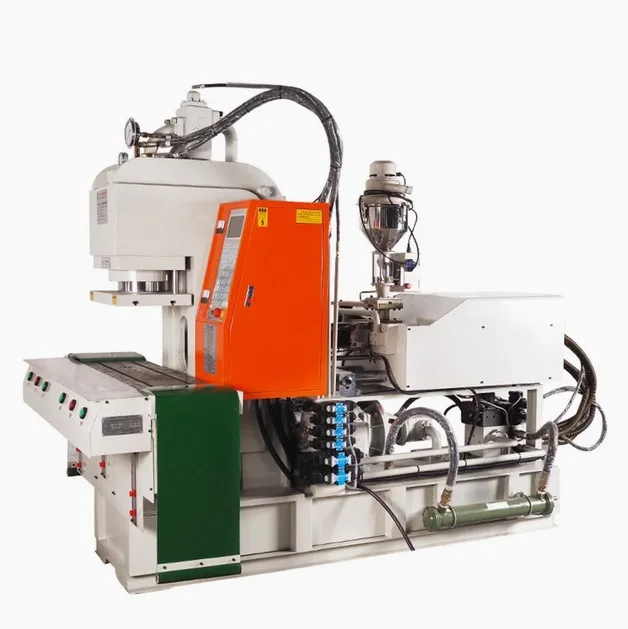

High Quality Advanced Plastic Vertical Clamping Horizontal Injection Molding Machine
High Quality Advanced Plastic Vertical Clamping Horizontal Injection Molding Machine
| machine type | Hydraulic | style | VERTICAL |
| key selling points | High-Accuracy | ejector number | 1 |
| core components | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Screw, Other | machinery test report | Provided |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 285 |
| injection weight (g) | 285 | injection rate (g/s) | 140.3 |
| weight (kg) | 4200 | power (kw) | 7.5 |
| mold height(mm) | 0 - 180 mm | ejector stroke(mm) | 100 |
| ejector force(kn) | 14.7 | theoretical shot volume(cm³) | 302 |
| screw speed (rpm) | 0 - 200 rpm | screw diameter (mm) | 45 |
| open stroke(mm) | 200 | Product name | Vertical Injection Molding Machine for Electric Plug Manufacturing |
| Max Injection Pressure | 101.6Mpa | Injection Speed | 88.3mm/s |
| Injection Stroke | 190mm | Number of Temperature Control | 3+1 |
| Nozzle Comtact Force | 539kn | Max Opening | 375 |
| Radio Tsui Center High | 135~185 | System Pressure | 13.7Mpa |
| Oil Tank Capacity | 160L |
