Professional Manufacturer of Plastic Processing Machinery

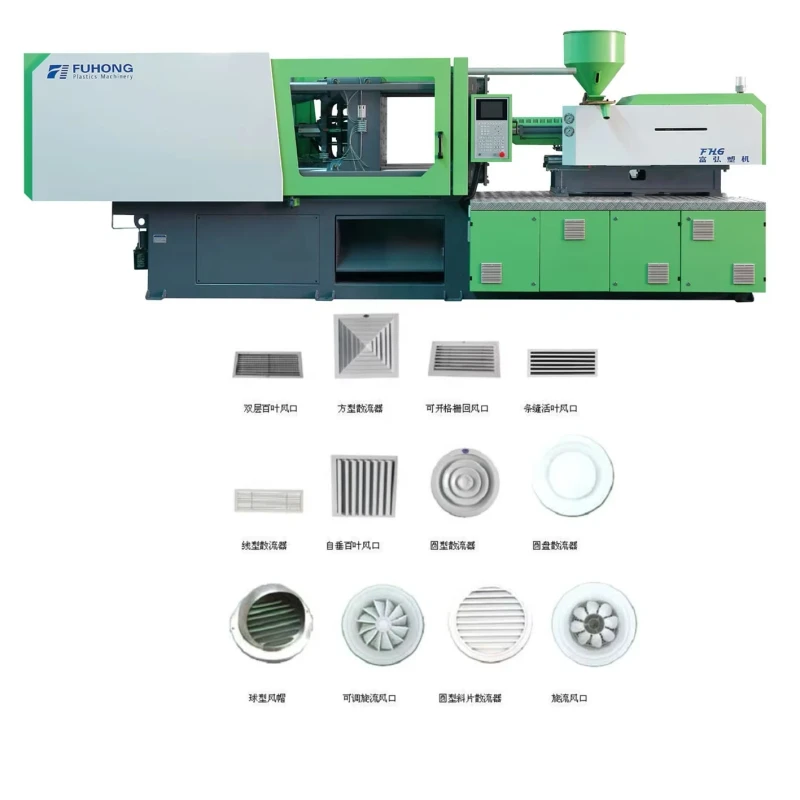

High Quality Horizontal Plastic Injection Molding Machine 180T 170T
High Quality Horizontal Plastic Injection Molding Machine 180T 170T
| machine type | Hydraulic | distance between tie bars | 480mm*480mm |
| plastic processed | PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, Polystyrene, PE, LDPE, PE/PP, Polylactic Acid | style | Horizontal |
| key selling points | Competitive Price | ejector number | 7 |
| core components | Motor, Pump, Engine, Gearbox, Screw | machinery test report | Provided |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 172 |
| injection weight (g) | 434 | injection rate (g/s) | 172 |
| weight (kg) | 5000 | power (kw) | 18.5 |
| mold height(mm) | 200 - 530 mm | ejector stroke(mm) | 130 |
| ejector force(kn) | 53 | theoretical shot volume(cm³) | 447 |
| screw speed (rpm) | 0 - 180 rpm | screw diameter (mm) | 52 |
| Screw L/D Ratio | 19.1 | open stroke(mm) | 435 |
| Plastic Type | Thermoplastic | Screw Diameter | 45mm-52mm |
| Injection pressure | 160mpa-215mpa | Space between Tie Bar | 480mm*480mm |
| Mould thickness | 200mm-540mm | Ejector stroke | 135mm |
| Ejector force | 53kn | Heating power | 12kw |
| Machine weight | 6ton |
