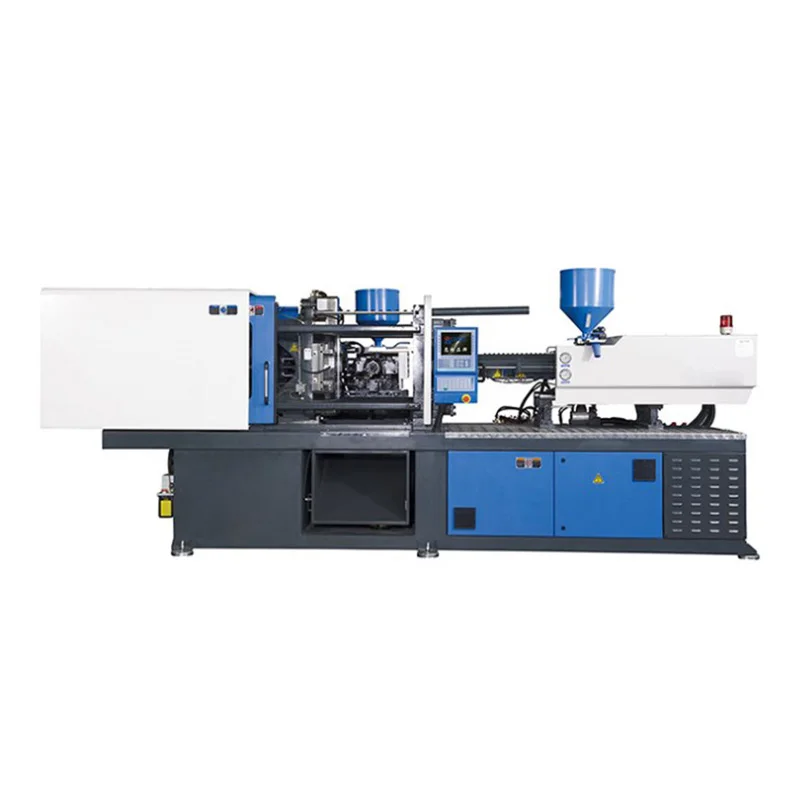

High Speed Automatic Making Mini Injection Molding Machine

High Speed Automatic Making Mini Injection Molding Machine
  • High Speed Automatic Making Mini Injection Molding Machine

    • High Speed Automatic Making Mini Injection Molding Machine

    Request a Quote
    machine typeHydraulicdistance between tie bars820x800 mm
    styleHorizontalkey selling pointsMultifunctional
    ejector number13core componentsMotor, Pump, PLC
    machinery test reportProvidedvideo outgoing-inspectionProvided
    plasticizing capacity(g/s)160injection weight (g)4000
    injection rate (g/s)800weight (kg)16500
    power (kw)48mold height(mm)300 - 780
    ejector stroke(mm)200ejector force(kn)126
    theoretical shot volume(cm³)2975screw speed (rpm)1 - 200
    screw diameter (mm)95Screw L/D Ratio17.9
    open stroke(mm)300Product namePlastic Injection Moulding Machine
    ApplicationInserting Plastic ProductsNameChina Inejction Molding Machine
    UsagePlastic Product MoldingFunctionMultifunctional Plastic Products Making
    KeywordPC.ABS.LCP.PP.PVC Plastic Injection MachineAfter-sales Service ProvidedVideo Technical Support
    StructureHorizontal Injection Molding MachineMarketing TypePopular Products
    Plastic TypeThermosetting
