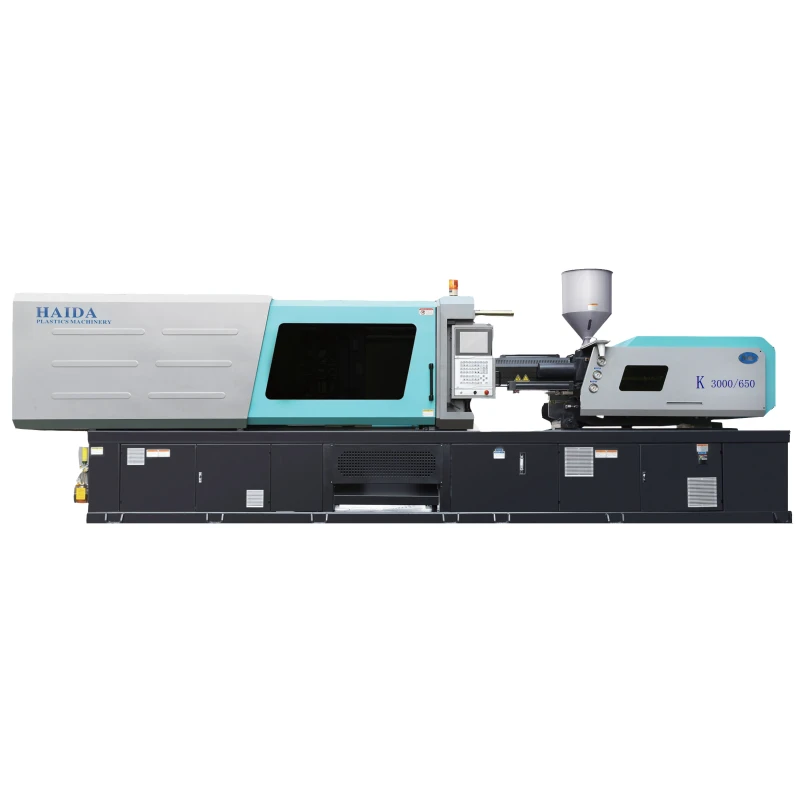

High Speed Injection Machine for Thin Wall Plastic Products with Servo Motor System
High Speed Injection Machine for Thin Wall Plastic Products with Servo Motor System
| machine type | Hydraulic | distance between tie bars | 565*515mm |
| plastic processed | PP, ABS, FRPP/PVC, PPR | style | Horizontal |
| key selling points | high speed | core components | Motor, Pump, PLC |
| machinery test report | Provided | video outgoing-inspection | Provided |
| plasticizing capacity(g/s) | 36 | injection weight (g) | 326 |
| injection rate (g/s) | 506 | weight (kg) | 10000 |
| power (kw) | 115 | ejector stroke(mm) | 140 |
| ejector force(kn) | 70 | theoretical shot volume(cm³) | 318 |
| screw diameter (mm) | 45 | open stroke(mm) | 500 |
| Machine dimension(L*W*H) | 6.0*1.5*2.3m | Screw diameter | 40/45mm |
| SCREW L/D RATIO | 25/23 | Voltage | 380V/ 50Hz 3P+N+E (alterable) |
| Heating power | 18kW | MOULD THICKNESS | 200-560mm |
| Ejector Stroke | 140mm | Ejector force | 70kN |
| Opening Stroke | 500mm | Clamping Force (kN) | 2600 kN |
