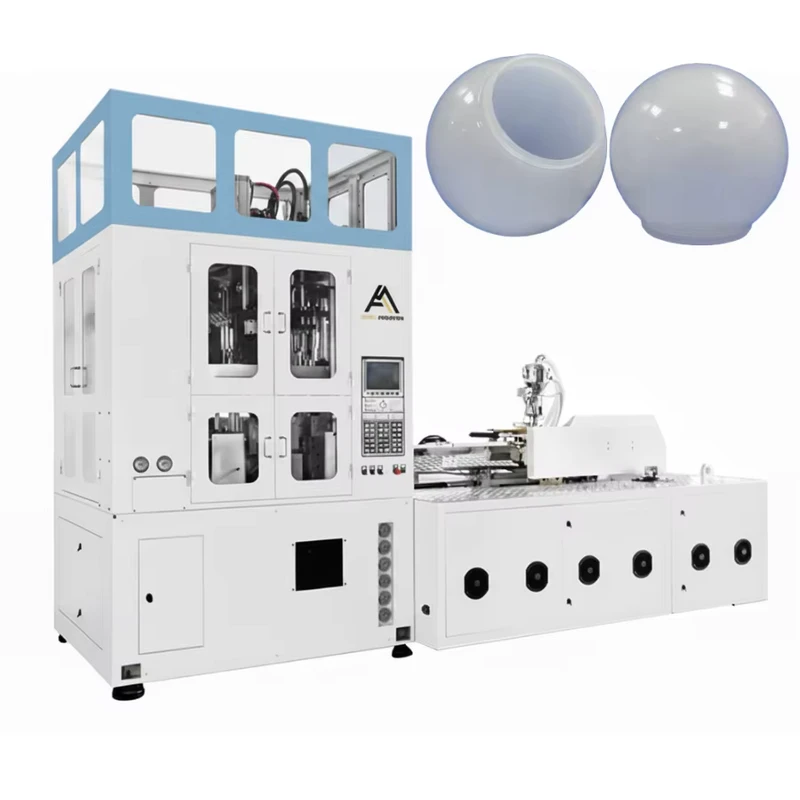

High Speed One Step ISBM Machine for LED Light Bulb Cover Automatic Injection Stretch Blow Molding Equipment PET PC
High Speed One Step ISBM Machine for LED Light Bulb Cover Automatic Injection Stretch Blow Molding Equipment PET PC
| plastic processed | PET | automation | Automatic |
| voltage | 380 V, 220 V, 110 V | machinery test report | Provided |
| video outgoing-inspection | Provided | core components | PLC, motor |
| key selling points | High Productivity | neck diameter(mm) | 140 |
| max.bottle diameter(mm) | 300 | clamping force (kn) | 80 |
| weight (kg) | 5000 | max.bottle height(mm) | 250 |
| dimension(l*w*h) | 3.8X1.5X3.2M | Screw Diameter | 40mm |
| Screw L/D Ratio | 20.5:1 | Screw Speed | 0-190RPM |
| Theoretical Injection Capacity | 238cm3 | Injection Pressure | 174Mpa |
| Max. Hydraulic Pressure | 140Kg/cm | The Actual Injection Quantity(PS): | 225g(ps)/8Oz |
| Max. Pump Pressure: | 16Mpa | Electric Power | 12.2kw |
