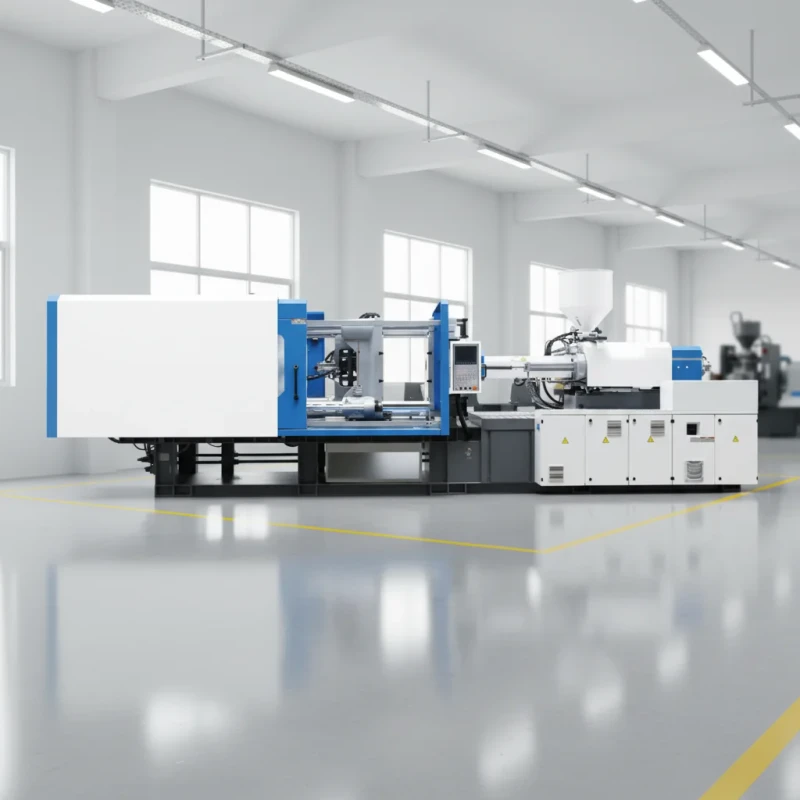

Horizontal Electric Automatic Injection Molding Machine with PLC and Pump for High-Accuracy PVC PE PP PET Materials
Horizontal Electric Automatic Injection Molding Machine with PLC and Pump for High-Accuracy PVC PE PP PET Materials
| machine type | Electric | distance between tie bars | 420x370 mm |
| plastic processed | PP, PET, PVC, PE, PE/PP | style | Horizontal |
| key selling points | High-Accuracy, High Safety Level, Long Service Life | ejector number | 4 |
| core components | Gearbox, PLC, Pump | machinery test report | Provided |
| video outgoing-inspection | Provided | Raw Material | Polyester (PET), Polyethylene (Pe), Polyvinyl Chloride (PVC), Polypropylene (PP) |
| plasticizing capacity(g/s) | 74 | injection weight (g) | 125 |
| injection rate (g/s) | 74 | weight (kg) | 3800 |
| power (kw) | 15 | mold height(mm) | 150 - 400 |
| ejector stroke(mm) | 100 | ejector force(kn) | 38 |
| screw speed (rpm) | 100 - 200 | screw diameter (mm) | 32 |
| Screw L/D Ratio | 25 | open stroke(mm) | 360 |
