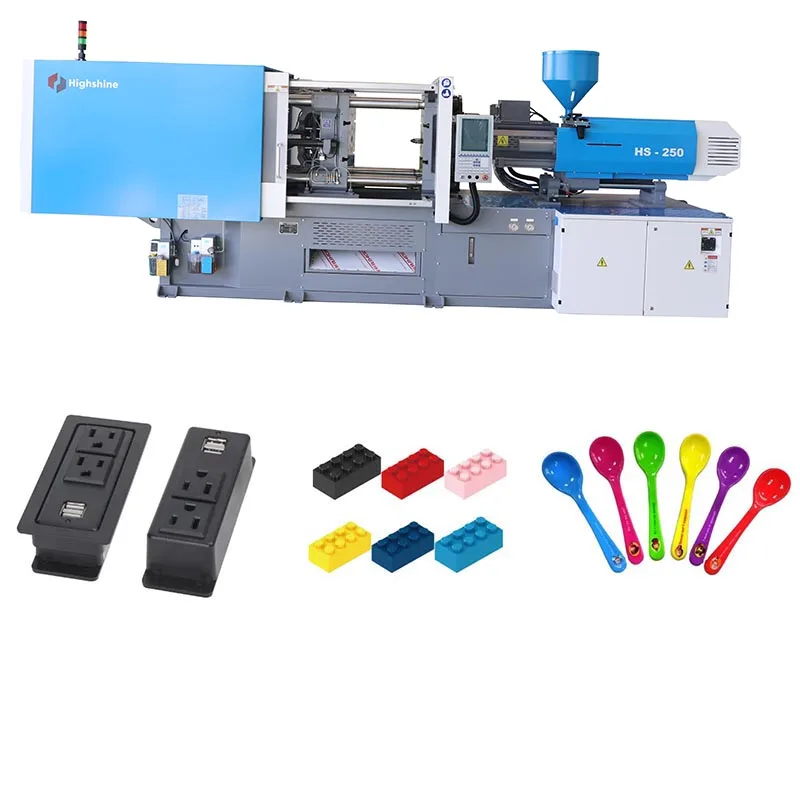

Horizontal Full Automatic Manufacturer High Safety Level Automatic Plastic Injection Molding Moulding Machine
Horizontal Full Automatic Manufacturer High Safety Level Automatic Plastic Injection Molding Moulding Machine
| machine type | Hydraulic | distance between tie bars | 570x520 mm |
| plastic processed | PP, PC, ABS, PET, PVC, PPR, HDPE, PA, PE, LDPE, HDPE/PP, PE/PP, ABS/PP | style | Horizontal |
| key selling points | Competitive Price, High Safety Level, High-Accuracy, Energy Saving | ejector number | 9 |
| core components | Bearing, Motor, Pump, Gear, PLC, Engine, Screw, Gearbox | machinery test report | Provided |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 27.2 |
| injection weight (g) | 447 | injection rate (g/s) | 180 |
| weight (kg) | 7000 | power (kw) | 22 |
| mold height(mm) | 220 - 570 | ejector stroke(mm) | 150 |
| ejector force(kn) | 77 | theoretical shot volume(cm³) | 491 |
| screw speed (rpm) | 0 - 213 | screw diameter (mm) | 50 |
| Screw L/D Ratio | 20 | open stroke(mm) | 520 |
| Product name | Highshine 250ton Injection Molding Machine | Color | White + Blue |
| Injection molding machine design | European type design | T-slot | Standard |
| Tank Volume | 240L | Overall size | 5.4*1.4*2.2 |
| Servo Driver | Inovance | Servo Motor | Inovance |
