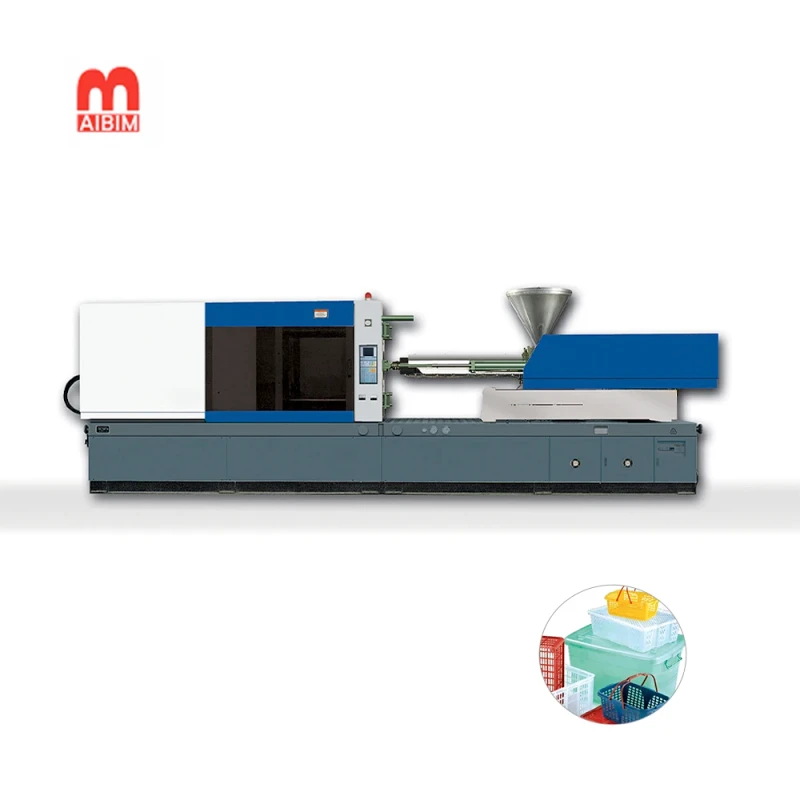

Horizontal Injection Molding Machine 950KN Small Injection Molding Machine With Servo
Horizontal Injection Molding Machine 950KN Small Injection Molding Machine With Servo
| machine type | Hydraulic | plastic processed | PP, PE, PE/PP, PS |
| style | Horizontal | key selling points | Automatic |
| ejector number | 5 | core components | Motor, Pump |
| machinery test report | Provided | video outgoing-inspection | Provided |
| plasticizing capacity(g/s) | 12.5 | injection weight (g) | 140 g |
| injection rate (g/s) | 91.8 g/s | weight (kg) | 3200 kg |
| power (kw) | 11 kW | mold height(mm) | 135 - 380 mm |
| ejector stroke(mm) | 85 mm | ejector force(kn) | 25.4 kN |
| theoretical shot volume(cm³) | 154 cm³ | screw speed (rpm) | 0 - 260 rpm |
| screw diameter (mm) | 35 mm | open stroke(mm) | 340 mm |
| Product name | Injection Molding Machine | Feature | With servo |
