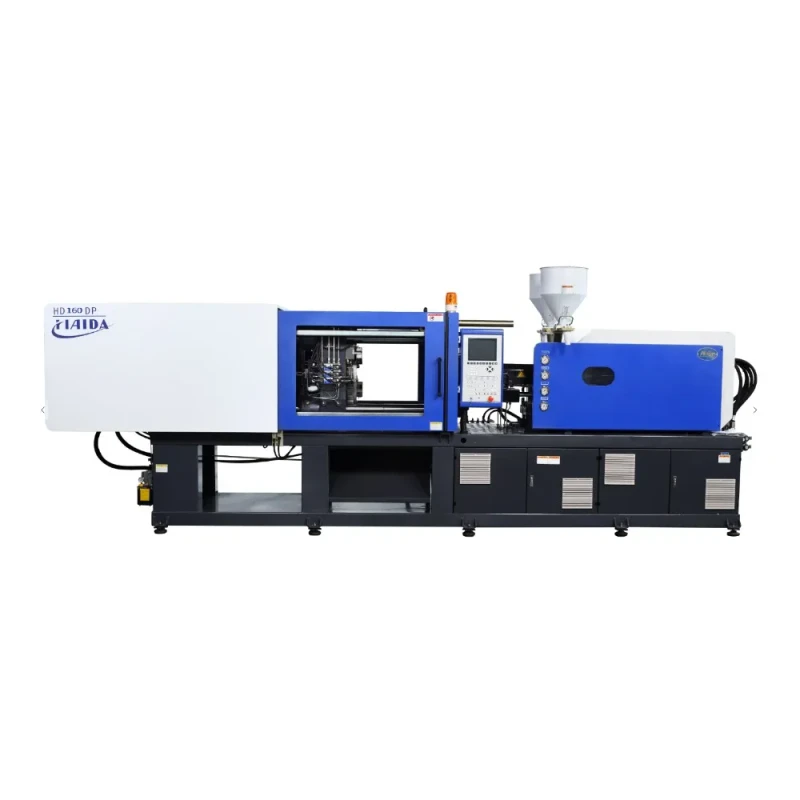

Horizontal Plastic Injection Molding Machine 130T 160T
Horizontal Plastic Injection Molding Machine 130T 160T
| machine type | Hydraulic | distance between tie bars | 420x420 mm |
| plastic processed | PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, PE, LDPE, HDPE/PP, ABS/PP, PE/PP | style | Horizontal |
| key selling points | Energy Saving | ejector number | 5 |
| core components | Bearing, Motor, Pump, Gear, PLC | machinery test report | Provided |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 98.7 |
| injection weight (g) | 200 g | injection rate (g/s) | 20 g/s |
| weight (kg) | 4300 kg | power (kw) | 13 kW |
| mold height(mm) | 150 - 450 mm | ejector stroke(mm) | 130 mm |
| ejector force(kn) | 45 kN | theoretical shot volume(cm³) | 220 cm³ |
| screw speed (rpm) | 0 - 187 rpm | screw diameter (mm) | 40 mm |
| Screw L/D Ratio | 21 | open stroke(mm) | 380 mm |
