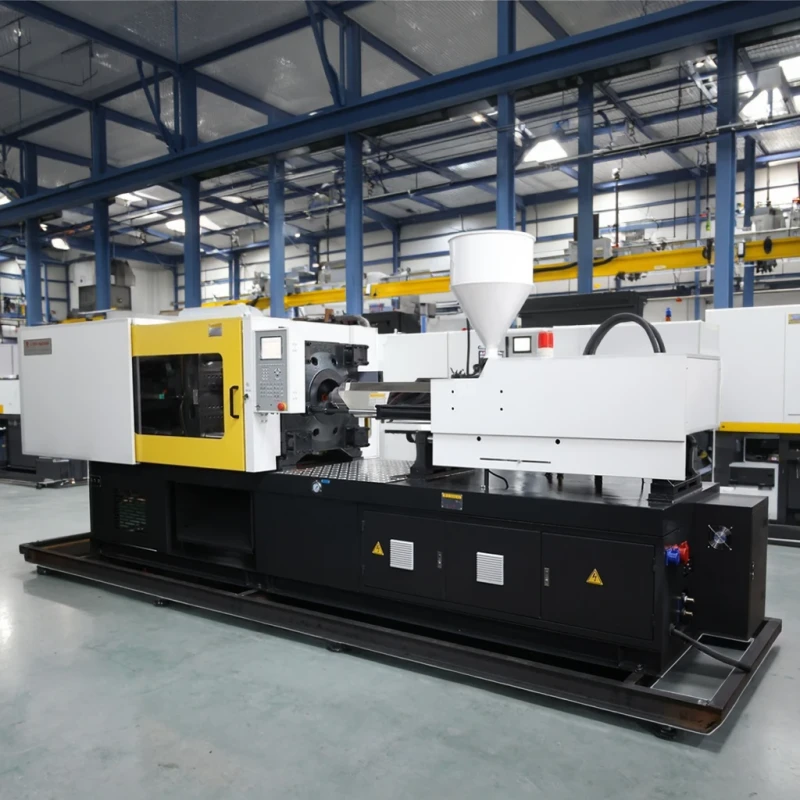

Horizontal Plastic Injection Moulding Machine for PET Bottle Preform Blow Molding Core Motor Components Processing PP PC
Horizontal Plastic Injection Moulding Machine for PET Bottle Preform Blow Molding Core Motor Components Processing PP PC
| machine type | Hydraulic | distance between tie bars | 760x710mm |
| plastic processed | PP, PC, PET, PVC, HDPE, LDPE, PE, ABS/PP, HDPE/PP | style | Horizontal |
| key selling points | Automatic, High Safety Level, High-Accuracy | ejector number | 13 |
| core components | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Screw | machinery test report | Provided |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 233 |
| injection weight (g) | 3951.3 | injection rate (g/s) | 918.9 |
| weight (kg) | 15300 | power (kw) | 115.6 |
| mold height(mm) | 240 - 730 | ejector stroke(mm) | 210 |
| ejector force(kn) | 182 | theoretical shot volume(cm³) | 3377.2 |
| screw speed (rpm) | 1 - 104 | screw diameter (mm) | 100 |
| Screw L/D Ratio | 24 | open stroke(mm) | 700 |
| Keyword | Injection Moulding Machine | Voltage | Customized |
| Application | Inserting Plastic Products | Function | Plastic Parts Production |
| Plastic Type | PE PP PA ABS | Shipping weight | 13.7T |
| Screw Stroke | 95mm-260mm | Dimension | 8.89 x2.12 x2.03m |
