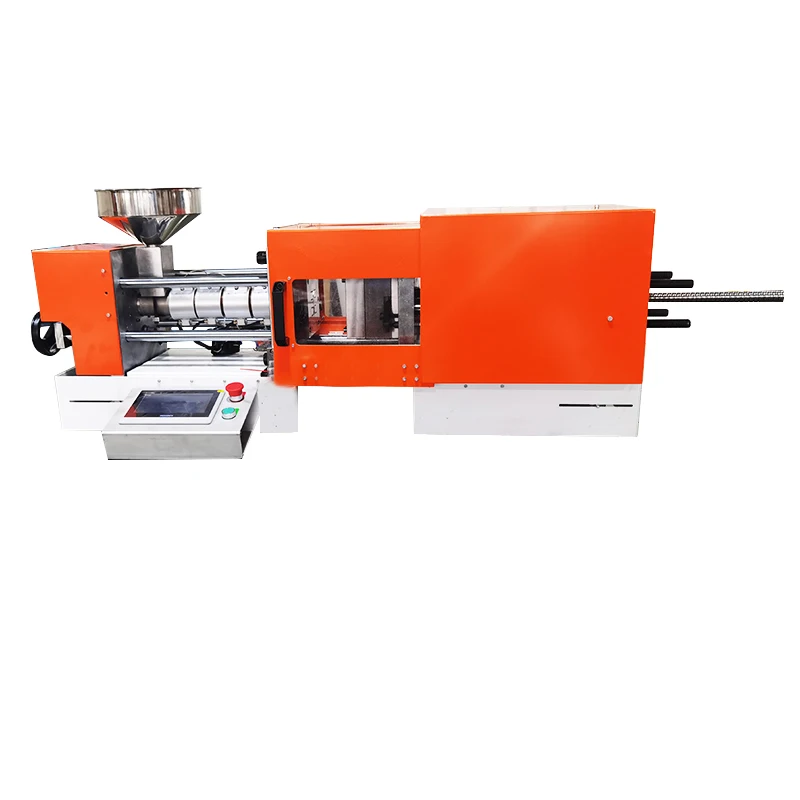

Horizontal Plastic Micro Small Products Making Injection Molding Machine

Horizontal Plastic Micro Small Products Making Injection Molding Machine
  • Horizontal Plastic Micro Small Products Making Injection Molding Machine

    • Horizontal Plastic Micro Small Products Making Injection Molding Machine

    Request a Quote
    machine typeElectricdistance between tie bars200x200mm
    plastic processedPP, ABS, PET, PVC, FRPP/PVC, HDPE, PA, Polystyrene, PE, LDPE, HDPE/PP, ABS/PP, PEEKstyleHorizontal
    key selling pointsDesk Mini Injection machinecore componentsBearing, Motor, Pump, PLC
    machinery test reportProvidedvideo outgoing-inspectionProvided
    injection weight (g)40 ginjection rate (g/s)27 g/s
    weight (kg)310 kgpower (kw)0.8 kW
    mold height(mm)50 - 125 mmejector stroke(mm)125 mm
    ejector force(kn)15 kNtheoretical shot volume(cm³)40 cm³
    screw diameter (mm)22 mmScrew L/D Ratio22
    open stroke(mm)125 mmProduct NameBaby size Injection molding machine testing masterbatch colors
    Plastic materialPP.PE ABS PS PMMA PEI PA6 PVC TPU PET PEEKDelivery Time35days
    Size12-15tonsMotorServo Energy Saving
    Voltage220vUsagetesting masterbatch colors
    After-sales Service ProvidedVideo technical supportAdvantageRich experience since year of 2000
