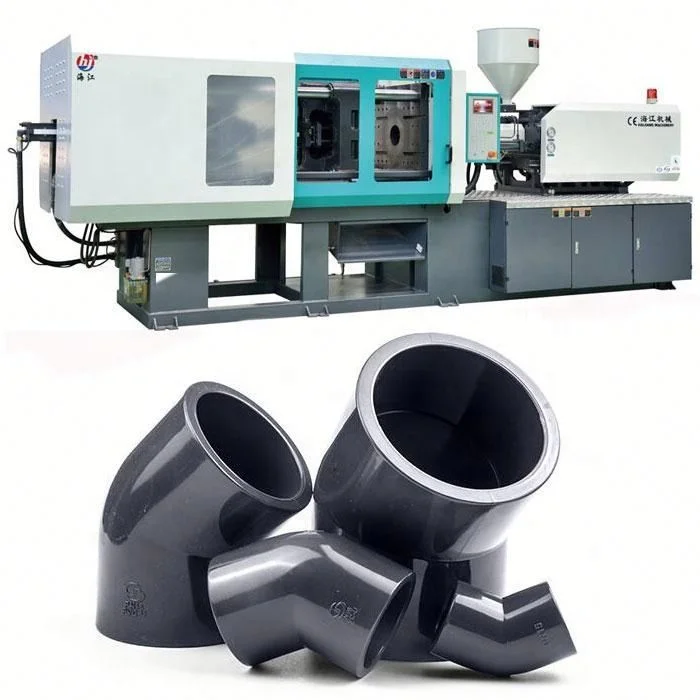

Horizontal Standard Plastic Auto 200 Ton Injection Molding Machine
Horizontal Standard Plastic Auto 200 Ton Injection Molding Machine
| machine type | Hydraulic | distance between tie bars | 510mm*510mm |
| plastic processed | PP, ABS, HDPE/PP, ABS/PP | style | Horizontal |
| key selling points | Multifunctional | ejector number | 16 |
| core components | Bearing, Screw | machinery test report | Provided |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 179 |
| injection weight (g) | 518 | injection rate (g/s) | 179 |
| weight (kg) | 7000 | power (kw) | 32 |
| mold height(mm) | 200 - 530 mm | ejector stroke(mm) | 165 |
| ejector force(kn) | 70 | theoretical shot volume(cm³) | 570 |
| screw speed (rpm) | 1 - 220 rpm | screw diameter (mm) | 55 |
| Screw L/D Ratio | 20 | open stroke(mm) | 490 |
| Plastic Type | Thermoplastic | Automatic | yes |
| Opening Stroke | 450 | Injection Rate | 136~185 |
| Power(W) | 7.5 | Injection Weight | 314~470 |
| After-sales Service Provided | Online support | After Warranty Service | Video technical support |
