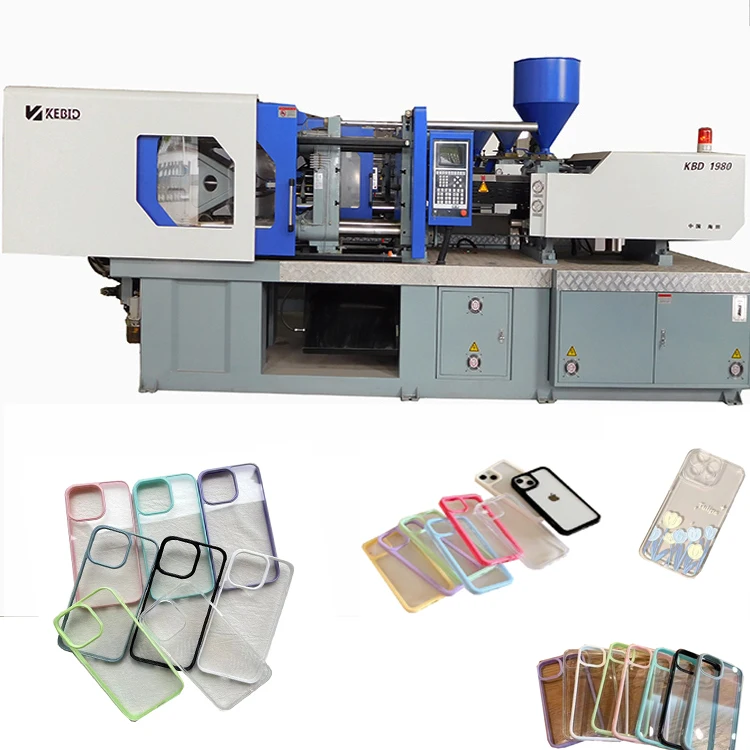

Hot Selling 170T Silicon Mini Injection Molding Machine Horizontal Style for Phone Cases Automatically PET PP HDPE PA Motor
Hot Selling 170T Silicon Mini Injection Molding Machine Horizontal Style for Phone Cases Automatically PET PP HDPE PA Motor
| machine type | Hydraulic | distance between tie bars | 470*470mm |
| plastic processed | PP, PC, PET, PVC, PPR, PE, PE/PP | style | Horizontal |
| key selling points | Energy Saving, Eco-Friendly, High-Accuracy, High Safety Level, Competitive Price, Automatic, Multifunctional | ejector number | 5 |
| core components | Motor, Pump, PLC, Other, Screw | machinery test report | Not Available |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 20.58 |
| injection weight (g) | 343 | injection rate (g/s) | 120 |
| weight (kg) | 5200 | power (kw) | 33.2 |
| mold height(mm) | 180 - 550 mm | ejector stroke(mm) | 135 |
| ejector force(kn) | 46 | theoretical shot volume(cm³) | 373 |
| screw speed (rpm) | 0 - 220 rpm | screw diameter (mm) | 45 |
| open stroke(mm) | 435 | Plastic Type | Thermoplastic |
| Automatic | YES | Color | Blue white black |
| Use | Production of plastic products | Sample Lead Time | One month |
| Injection pressure | 173MPa | Machine weight | 5.5t |
| Machine dimension | 5.15*1.3*1.94 | Certification | CE ISO 9001 |
