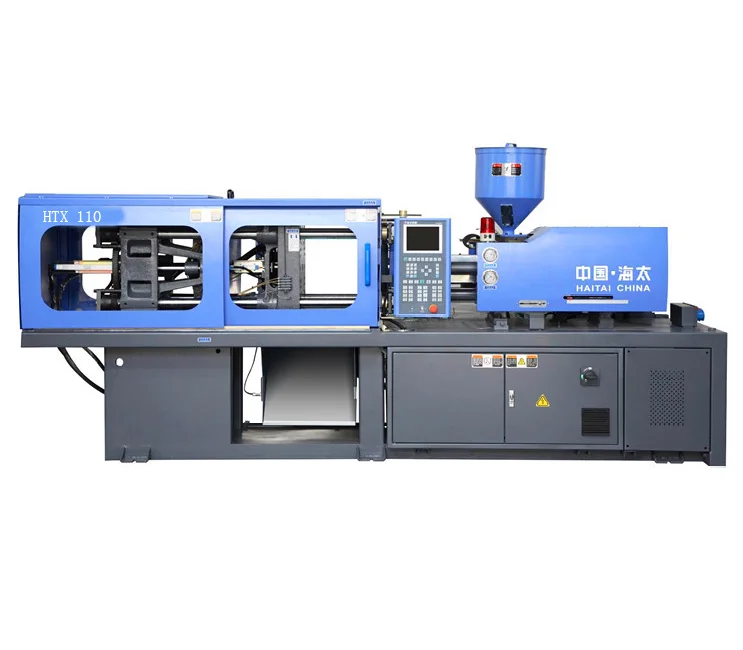

HTW110 HAITAI Mini Injection Molding Machine plastic Cap Making Machine
HTW110 HAITAI Mini Injection Molding Machine plastic Cap Making Machine
| machine type | Hydraulic | distance between tie bars | 410*410 |
| plastic processed | PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, PA, Polystyrene, PE, EVOH, HDPE/PP, ABS/PP, PE/PP | style | Horizontal |
| key selling points | Automatic | core components | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Screw |
| machinery test report | Provided | video outgoing-inspection | Provided |
| injection weight (g) | 175 g | injection rate (g/s) | 105 g/s |
| weight (kg) | 3400 kg | power (kw) | 13 kW |
| ejector stroke(mm) | 350 mm | ejector force(kn) | 38 kN |
| theoretical shot volume(cm³) | 163 cm³ | screw speed (rpm) | 200 - 210 rpm |
| screw diameter (mm) | 35 mm | open stroke(mm) | 350 mm |
| Plastic Type | Thermoplastic | Automatic | Yes |
| Opening Stroke | 350mm | After-sales Service Provided | Engineers available to service machinery overseas |
| Oiltank Cubage | 230L | Type | Plastic injection moulding machine |
| Injection Rate | 89g/s | Injection Weight | 148g |
| Power(W) | 13kw | Clamping Force (kN) | 1100 kN |
