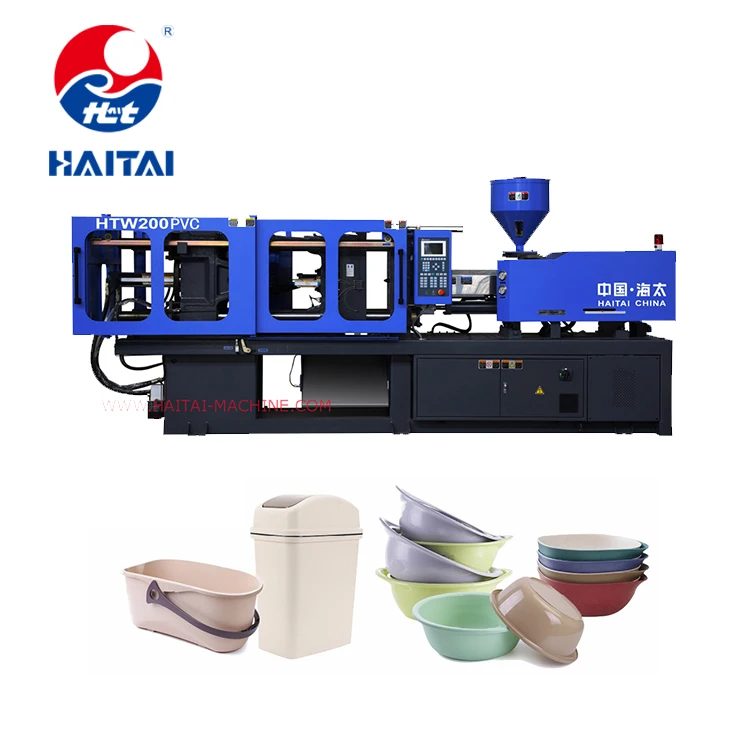

HTW200JB High Accuracy Horizontal Hydraulic Plastic Injection Molding Machine with Motor Bearing
HTW200JB High Accuracy Horizontal Hydraulic Plastic Injection Molding Machine with Motor Bearing
| machine type | Hydraulic | plastic processed | PP, PC, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, EPS, PA, Polystyrene, PE, HDPE/PP, ABS/PP, PE/PP |
| style | Horizontal | key selling points | High-Accuracy |
| ejector number | 6 | core components | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Screw |
| machinery test report | Provided | video outgoing-inspection | Provided |
| plasticizing capacity(g/s) | 186 | injection weight (g) | 466 |
| injection rate (g/s) | 186 | weight (kg) | 7000 |
| power (kw) | 18.5 | ejector stroke(mm) | 140 |
| ejector force(kn) | 70 | theoretical shot volume(cm³) | 510 |
| screw diameter (mm) | 55 | open stroke(mm) | 475 |
| Injection Weight | 383 g | Injection Rate | 154 g/s |
| Opening Stroke | 475 MM | After-sales Service Provided | HTW200JB Fast Precision plastic injection molding machine |
| Injection Screw diameter | 45-50-55mm | Screw L/d ratio | 23.3-21-19.1 |
| injection pressure | 207-168-139 mpa | screw speed | 155 rpm |
| space between tie bar | 530x530 mm |
