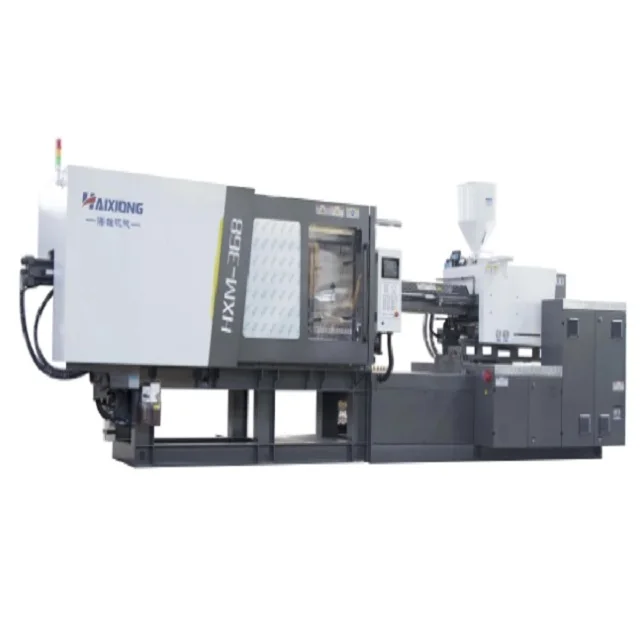

HXM368 II Haixiong Servo Plastic Injection Machine
HXM368 II Haixiong Servo Plastic Injection Machine
| machine type | Hydraulic | distance between tie bars | 720x670mm |
| plastic processed | PP, PC, ABS, PET, PVC, HDPE, PA, PE, LDPE, PE/PP | style | Horizontal |
| key selling points | Energy Saving | ejector number | 13 |
| core components | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Screw | machinery test report | Provided |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 52 |
| injection weight (g) | 1357 g | injection rate (g/s) | 408 g/s |
| weight (kg) | 11500 kg | power (kw) | 38 kW |
| mold height(mm) | 250 - 750 mm | ejector stroke(mm) | 180 mm |
| ejector force(kn) | 134 kN | theoretical shot volume(cm³) | 1502 cm³ |
| screw speed (rpm) | 0 - 160 rpm | screw diameter (mm) | 75 mm |
| Screw L/D Ratio | 20 | open stroke(mm) | 660 mm |
| Clamping Force (kN) | 3680 | After-sales Service Provided | Free spare parts |
| After Warranty Service | Spare parts | Local Service Location | Turkey |
| Plastic injection moulding machine | Russia | Certification | CE |
| Marketing Type | Ordinary Product |
