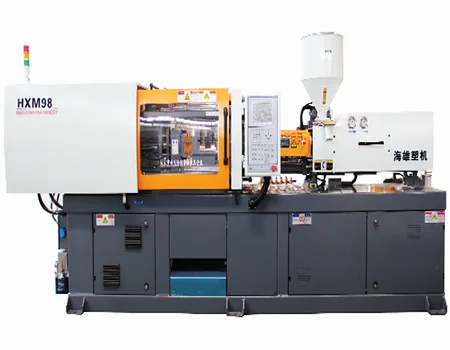

HXM98 Servo Plastic Injection Machine
HXM98 Servo Plastic Injection Machine
| machine type | Hydraulic | distance between tie bars | 360x340mm |
| plastic processed | PP, PC, ABS, PET, HDPE, PA, PE, LDPE, PE/PP | style | Horizontal |
| key selling points | Automatic | ejector number | 5 |
| core components | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Screw | machinery test report | Provided |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 17 |
| injection weight (g) | 182 g | injection rate (g/s) | 111 g/s |
| weight (kg) | 2700 kg | power (kw) | 11 kW |
| mold height(mm) | 150 - 390 mm | ejector stroke(mm) | 100 mm |
| ejector force(kn) | 45 kN | theoretical shot volume(cm³) | 200 cm³ |
| screw speed (rpm) | 100 - 240 rpm | screw diameter (mm) | 40 mm |
| Screw L/D Ratio | 19.2 | open stroke(mm) | 315 mm |
| Clamping Force (kN) | 980 | After-sales Service Provided | Free spare parts |
| After Warranty Service | Spare parts | Local Service Location | Turkey |
| Plastic injection moulding machine | Russia | Certification | CE |
