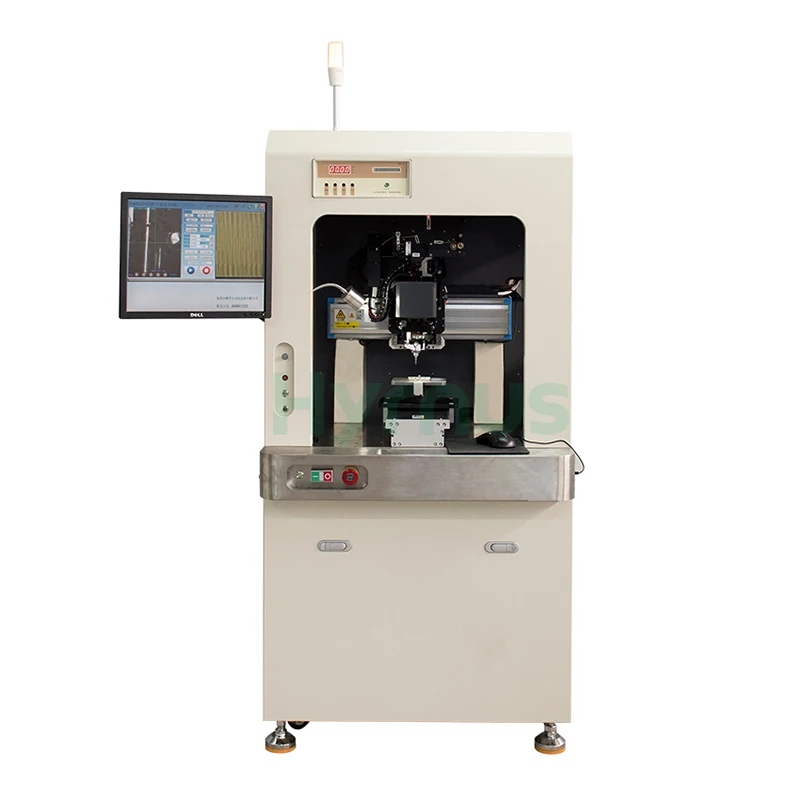

HY HW3741A Automatic Ultrasonic Heavy Aluminum Wire Wedge Bonder Wedge Bonding

HY HW3741A Automatic Ultrasonic Heavy Aluminum Wire Wedge Bonder Wedge Bonding
  • HY HW3741A Automatic Ultrasonic Heavy Aluminum Wire Wedge Bonder Wedge Bonding

    • HY HW3741A Automatic Ultrasonic Heavy Aluminum Wire Wedge Bonder Wedge Bonding

    Request a Quote
    Machine Typeultrasonic heavy aluminum wire wedge bonderVoltage220 V
    core componentsEngine, Motormachinery test reportProvided
    video outgoing-inspectionProvidedWeight (KG)650
    Product nameAutomatic Ultrasonic Heavy Aluminum Wire Wedge BonderUltrasonic Frequency60
    Ultrasonic Power0~24W, with automatic switching between 1st and 2nd bondsBondable Aluminum Wire Diameter125~500 μm (5~20 mil)
    Ultrasonic Time10~500 ms, multi-channel controlBonding Force50~1200 g, multi-channel control
    Bonding SpeedApprox. 1.5 seconds per wireVision SystemPR microscope with 0.5x magnification
    PR IlluminationWhite light with adjustable brightnessOverall Dimensions (LWH)Approx. 800 1000 1650 mm
