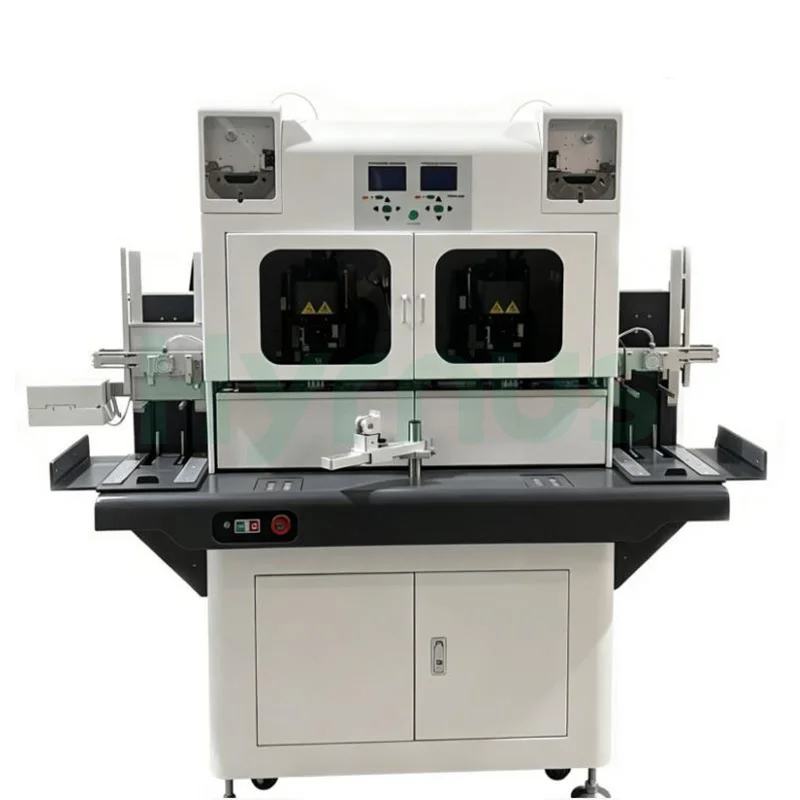

HY HW3850 Automatic Ultrasonic Heavy Aluminum Wire Wedge Bonder Wedge Bonding

HY HW3850 Automatic Ultrasonic Heavy Aluminum Wire Wedge Bonder Wedge Bonding
  • HY HW3850 Automatic Ultrasonic Heavy Aluminum Wire Wedge Bonder Wedge Bonding

    • HY HW3850 Automatic Ultrasonic Heavy Aluminum Wire Wedge Bonder Wedge Bonding

    Request a Quote
    Machine Typeultrasonic heavy aluminum wire wedge bonderVoltage220 V
    core componentsEngine, Motormachinery test reportProvided
    video outgoing-inspectionProvidedWeight (KG)550
    Product nameAutomatic Ultrasonic Heavy Aluminum Wire Wedge BonderPower ConsumptionMax. 1200W
    UPH2.2~2.7K/h (TO-220 double wire)Bonding Time1~1000ms
    Bonding Force30~1200g (independently adjustable for each bonding point)Ultrasonic Power0~30W,
    Operating Air Pressure4~6 kg/cm²Bondable Aluminum Wire Diameter125~500μm (5~20mil)
    Overall Dimensions1600mm 2000mm 850mmBonding Angle90
