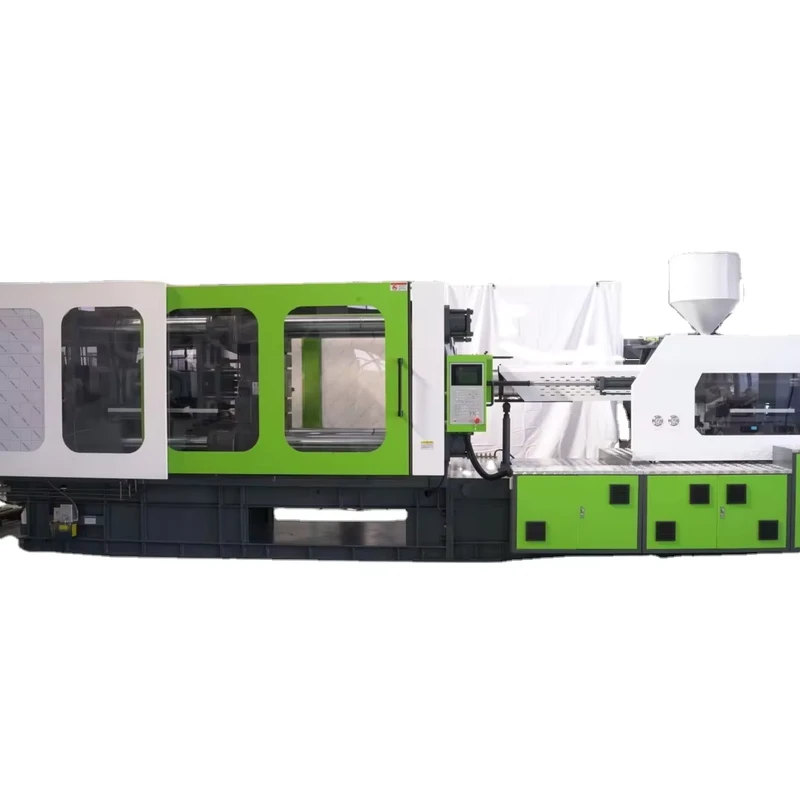

IJT SV530 Horizontal Hydraulic Injection Blow Molding Machine ABS PP PC PA HDPE PPR PLC High End Polyester Preform Mold Forming

IJT SV530 Horizontal Hydraulic Injection Blow Molding Machine ABS PP PC PA HDPE PPR PLC High End Polyester Preform Mold Forming
  • IJT SV530 Horizontal Hydraulic Injection Blow Molding Machine ABS PP PC PA HDPE PPR PLC High End Polyester Preform Mold Forming

    • IJT SV530 Horizontal Hydraulic Injection Blow Molding Machine ABS PP PC PA HDPE PPR PLC High End Polyester Preform Mold Forming

    Request a Quote
    machine typeHydraulicdistance between tie bars840*830mm
    plastic processedPP, PC, ABS, PPR, EVA, HDPE, MLLDPE, EPS, PA, Polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PPstyleHorizontal
    key selling pointsCompetitive Priceejector number13
    core componentsMotor, PLCmachinery test reportProvided
    video outgoing-inspectionProvidedplasticizing capacity(g/s)129
    injection weight (g)2667injection rate (g/s)675
    weight (kg)26000power (kw)72
    mold height(mm)350 - 850ejector stroke(mm)220
    ejector force(kn)158theoretical shot volume(cm³)2931
    screw speed (rpm)0 - 175screw diameter (mm)90
    Screw L/D Ratio19.6open stroke(mm)850
    Opening Stroke840mmCOLORwhite ,green or customized
    After-sales Service ProvidedEngineers available to service machinery overseasProduct namePlastic Injection Moulding Machine
    Operating LanguageChinese and EnglishUsageMake Small Plastic Products
    Product KeywordsMobile Phone Motherboard PartsPlastic TypeThermoplastic
