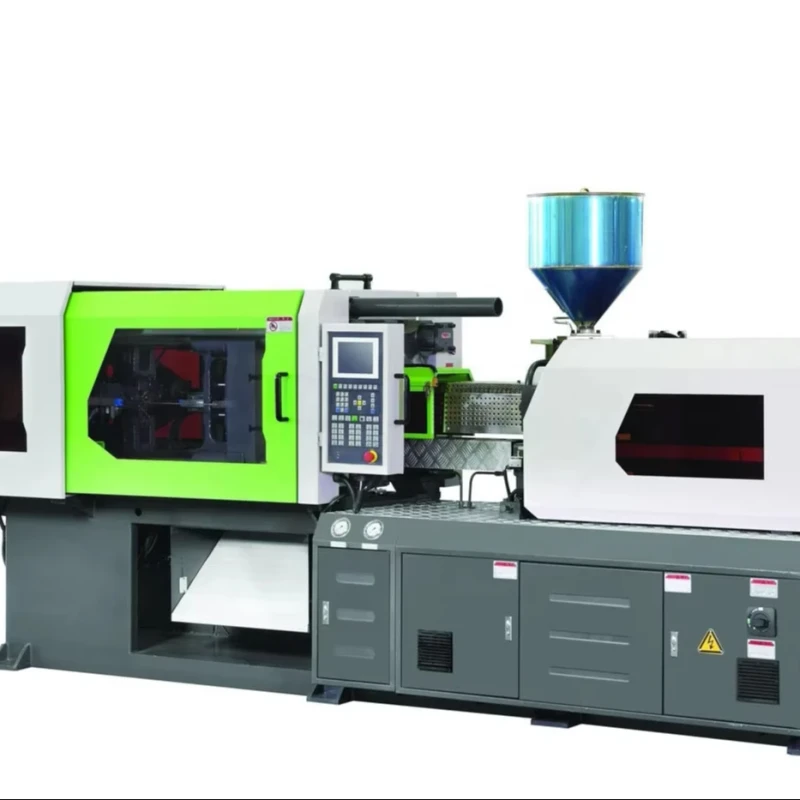

IJT-SV650 Automatic Horizontal Injection Molding Machine ABS PP Compatible High Efficiency PLC Controlled Thermoplastic Power

IJT-SV650 Automatic Horizontal Injection Molding Machine ABS PP Compatible High Efficiency PLC Controlled Thermoplastic Power
  • IJT-SV650 Automatic Horizontal Injection Molding Machine ABS PP Compatible High Efficiency PLC Controlled Thermoplastic Power

    • IJT-SV650 Automatic Horizontal Injection Molding Machine ABS PP Compatible High Efficiency PLC Controlled Thermoplastic Power

    Request a Quote
    machine typePLASTIC MOLDING INJECTIONdistance between tie bars910*910mm
    plastic processedPP, ABS, PE, ABS/PP, PE/PPstyleHorizontal
    key selling pointsTOP QUALITY IN GOOD PRICEejector number17
    core componentsMotor, PLCmachinery test reportProvided
    video outgoing-inspectionProvidedplasticizing capacity(g/s)182
    injection weight (g)3788injection rate (g/s)1011
    weight (kg)36000power (kw)87
    mold height(mm)400 - 900ejector stroke(mm)260
    ejector force(kn)186theoretical shot volume(cm³)4209
    screw speed (rpm)0 - 138screw diameter (mm)110
    Screw L/D Ratio18open stroke(mm)900
    Power supply monitoredIncludedinjector platen safety deviceIncluded
    Mold temperature control .Includedmachine type860T plastic injection molding machine
    motor typepower saving motorAfter-sales Service ProvidedEngineers available to service machinery overseas
    USB conectionIncludedOpening Stroke1040mm
    Plastic TypeThermoplasticAutomaticYes
