Professional Manufacturer of Plastic Processing Machinery

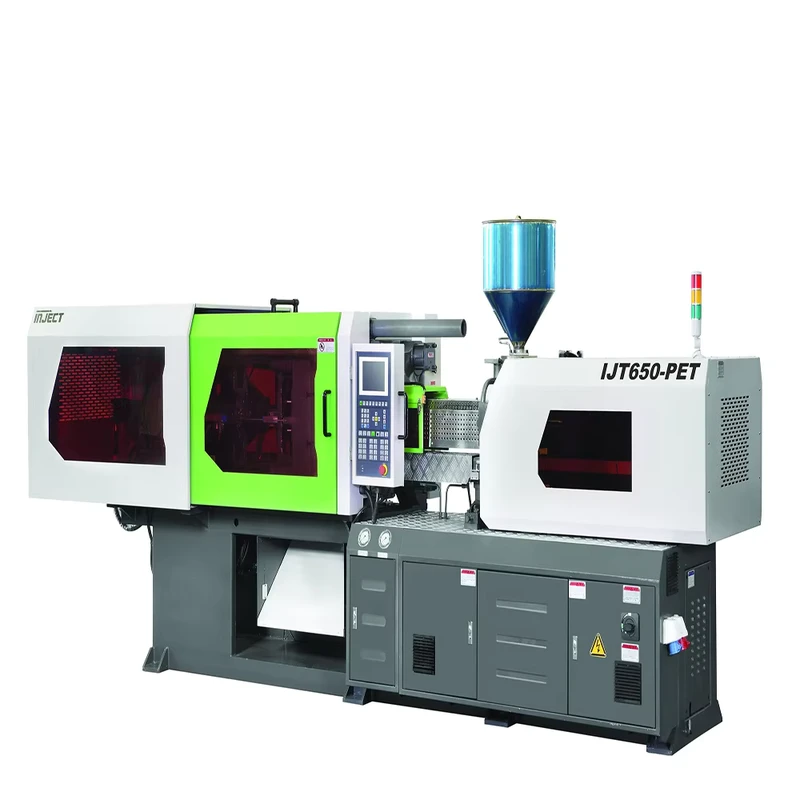

IJT650 PET Automatic Horizontal Hydraulic Injection Blow Molding Machine PLC Motor PET Pure Water Bottles High Power Mold
IJT650 PET Automatic Horizontal Hydraulic Injection Blow Molding Machine PLC Motor PET Pure Water Bottles High Power Mold
| machine type | Hydraulic | distance between tie bars | 910x910mm |
| plastic processed | PET | style | Horizontal |
| key selling points | Competitive Price | ejector number | 1 |
| core components | Motor, PLC | machinery test report | Provided |
| video outgoing-inspection | Provided | Raw Material | Polyethylene (Pe), Polypropylene (PP), Polyvinyl Chloride (PVC), Polyester (PET), Polyamide (Pa) |
| plasticizing capacity(g/s) | 182 | injection weight (g) | 4174 |
| injection rate (g/s) | 836 | weight (kg) | 36000 |
| power (kw) | 70 | mold height(mm) | 400 - 900 |
| ejector stroke(mm) | 260 | ejector force(kn) | 175 |
| theoretical shot volume(cm³) | 2818 | screw speed (rpm) | 0 - 138 |
| screw diameter (mm) | 100 | Screw L/D Ratio | 24.3 |
| open stroke(mm) | 900 | Opening Stroke | 910mm |
| After-sales Service Provided | Overseas service center available | Mold temperature control | Included |
| color | white green | termperature control | Closed loop PID |
| Feed throat-temperature | Included | screen | Color LCD |
| Spare parts | Included | Power supply monitored | Included |
| Open nozzle with nozzle head | Included |
