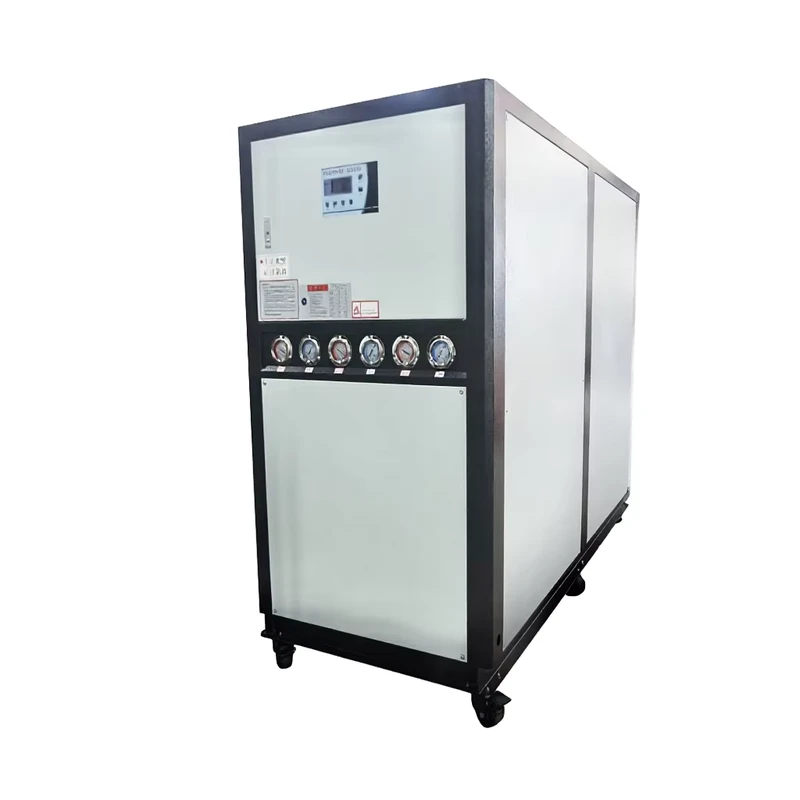

Industrial Water Cooled Chiller 30HP 92kW CE Certified for Plastic Extrusion
Industrial Water Cooled Chiller 30HP 92kW CE Certified for Plastic Extrusion
| voltage | 230 V, 240 V, 110 V, 380 V, 415 V, 220 V | power | 26.5 kW |
| Refrigerant | R-404A, R-22, R-410A, Customizable | compressor brand | Emerson, Copeland |
| Pump Type | Vertical Pipeline Pump | machinery test report | Provided |
| video outgoing-inspection | Provided | Plug Type | Brazilian Plug;Us Plug;Israeli Plug;South African Plug;European Plug;Australian Plug |
| core components | Pump, Compressor | Container Volume | 390L |
| Weight (KG) | 680 | dimension(l*w*h) | 2000x860x1600mm |
| working temperature range | -40C to 35C Customizable | Cooling Capacity (kcal/h) | 79378 |
| Flow Rate (L/min) | 800 | Condenser Type | Shell and Tube High Efficiency Heat Exchange Condenser |
| Evaporator Type | Tank Coil Type (Customization Supported: Shell and Tube Type) | Evaporator Material | Purple Copper Pipe |
| Cooling Tower Connection | DN65 | Chilled Water Connection | DN80 |
| Throttling Type | External Balanced Thermal Expansion Valve | Electrical Protection | Leakage;Over Current;Phase Sequence/Phase Loss Protection |
| Equipment Protection | Compressor Overheat;H/L Pressure;Overtemp;Flow;Low Level;Antifreeze |
