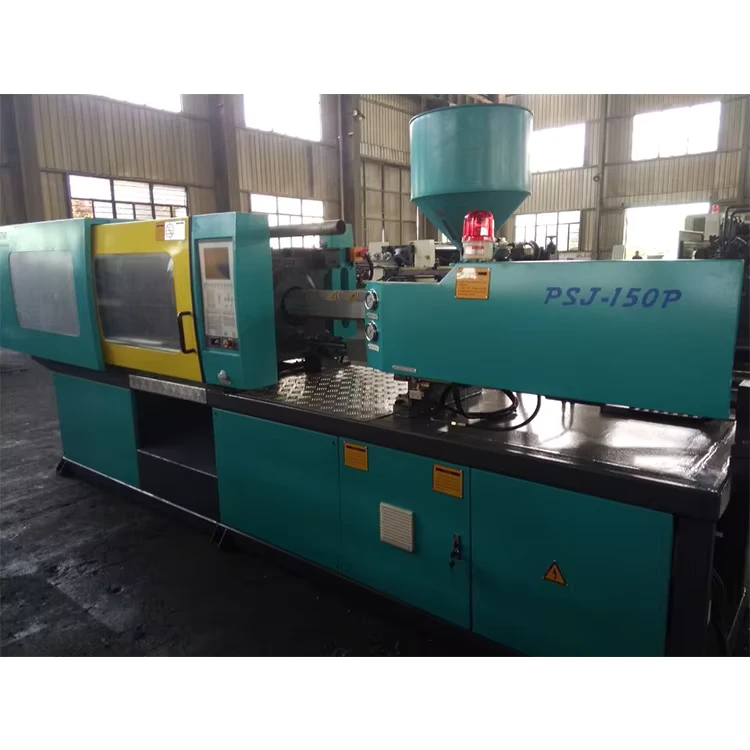

Injection Blow Molding Moulding Machine Prices Automatic Aluminum Small Used Desktop Plastic Inserting Plastic Products
Injection Blow Molding Moulding Machine Prices Automatic Aluminum Small Used Desktop Plastic Inserting Plastic Products
| machine type | Mechanical | distance between tie bars | 410x410 mm |
| style | Horizontal | key selling points | Multifunctional |
| core components | PLC | machinery test report | Not Available |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 28 |
| injection weight (g) | 425 g | injection rate (g/s) | 131 g/s |
| weight (kg) | 4800 | power (kw) | 15 kW |
| mold height(mm) | 150 - 430 mm | ejector stroke(mm) | 120 mm |
| ejector force(kn) | 33 kN | theoretical shot volume(cm³) | 392.5 cm³ |
| screw speed (rpm) | 0 - 200 rpm | screw diameter (mm) | 50 mm |
| Screw L/D Ratio | 23 | open stroke(mm) | 400 mm |
| Product name | Plastic Injection Moulding Machine | Keyword | PC.ABS.LCP.PP.PVC Plastic Injection Machine |
| Injection pressure | 229.7Mpa | Product | PP PVC ABS TPE |
| Opening Stroke | 400mm | Function | Plstic Injection Molding Machinery |
| Machiner Dimensions(mm) | 4.8x1.2x1.8m | Machine weight | 4.8T |
| Application | Inserting Plastic Products | Name | China Inejction Molding Machine |
| Plastic Type | Thermoplastic | Automatic | Yes |
| Clamping Force (kN) | 1500 |
