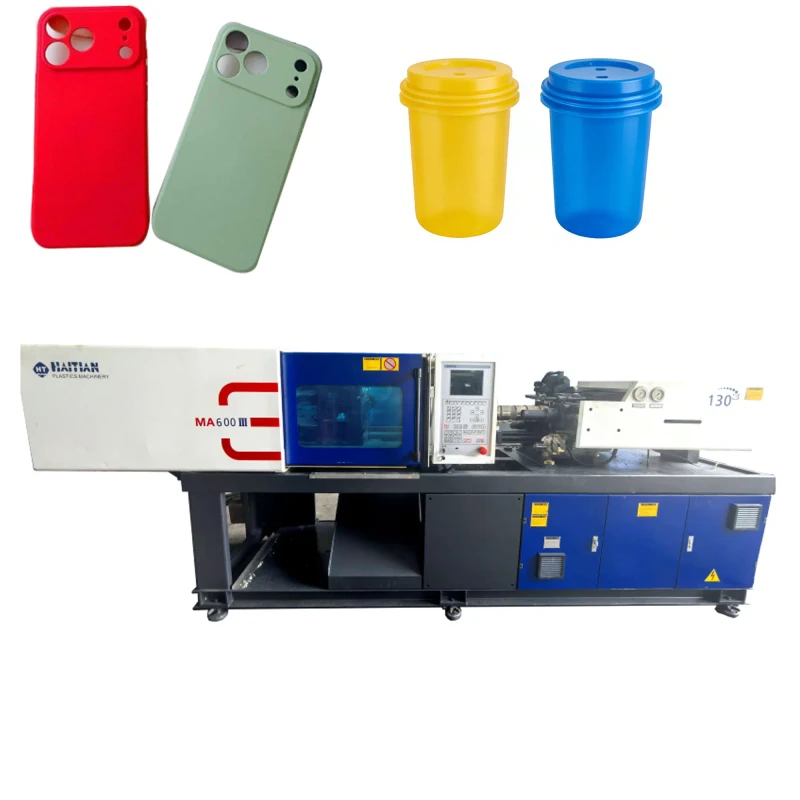

Injection Machine 60 Ton Small Precision Plastic Part Molding Equipment Factory Direct Supply
Injection Machine 60 Ton Small Precision Plastic Part Molding Equipment Factory Direct Supply
| machine type | Hybrid | style | Horizontal |
| core components | Motor, Pump, PLC, Bearing, Gear, Pressure Vessel, Engine, Gearbox, Screw | machinery test report | Not Available |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 8.6 |
| injection weight (g) | 62 | injection rate (g/s) | 70 |
| weight (kg) | 2500 | power (kw) | 5.2 |
| mold height(mm) | 120 - 330 | ejector stroke(mm) | 70 |
| ejector force(kn) | 22 | theoretical shot volume(cm³) | 68 |
| screw diameter (mm) | 28 | Screw L/D Ratio | 20 |
| Space Between Tie Bars | 310*310 | Machine Dimension(L*W*H) | 3.75*1.05*1.87 |
