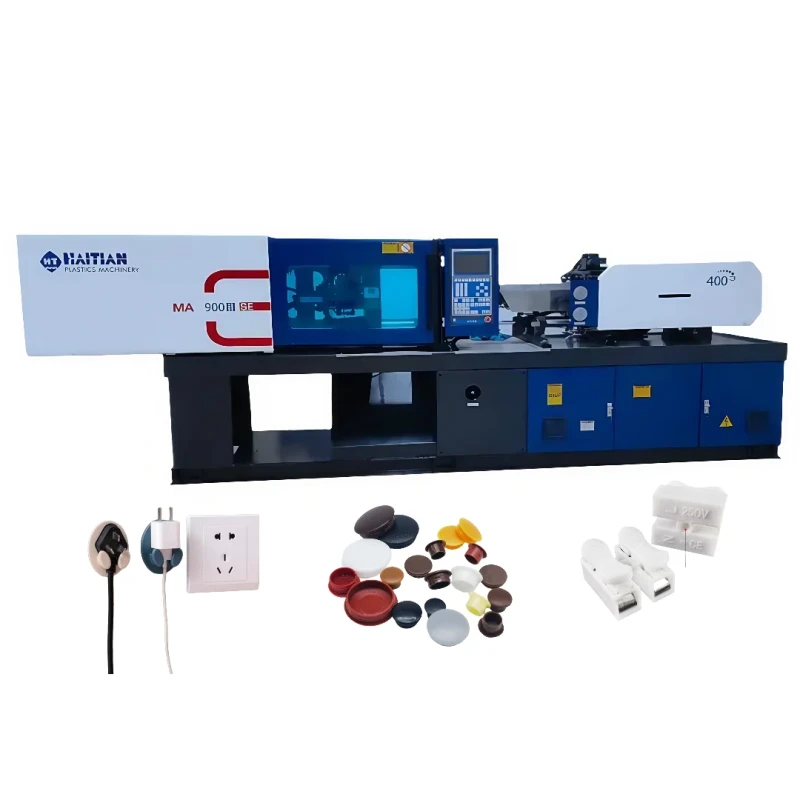

Injection Molding Machine MA90 Tons of Horizontal Plastic Machinery
Injection Molding Machine MA90 Tons of Horizontal Plastic Machinery
| machine type | Hydraulic | distance between tie bars | 3600x360 mm |
| plastic processed | PP, PVC, PC, ABS, PET, PA, PE | style | Horizontal |
| key selling points | Energy Saving | ejector number | 5 |
| core components | Motor, Pump, Pressure Vessel | machinery test report | Provided |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 12.4 |
| injection weight (g) | 139 | injection rate (g/s) | 98 |
| weight (kg) | 30000 | power (kw) | 11.5 |
| mold height(mm) | 150 - 360 mm | ejector stroke(mm) | 100 |
| ejector force(kn) | 33 | theoretical shot volume(cm³) | 153 |
| screw speed (rpm) | 0 - 230 rpm | screw diameter (mm) | 36 |
| Screw L/D Ratio | 20 | open stroke(mm) | 310 |
| Product Name | Plastic Injection Moulding Machine | Color | Picture color |
| Application program | Plastic molding | Function | Multi-functional, durable and safe |
| Advantages | Profession | Payment | TT |
| Port | Shekou, Nansha | Packing material | Standard package |
