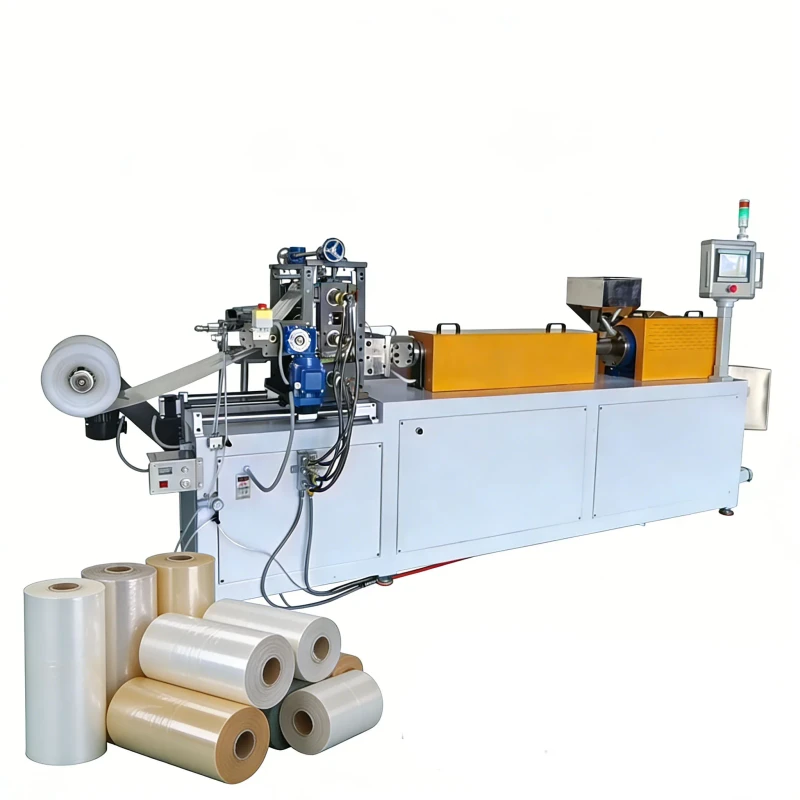

Lab Cast PE HDPE LDPE Stretch Film Calender Small Plastic Film Making Machine for Pelletizing Wire Plates
Lab Cast PE HDPE LDPE Stretch Film Calender Small Plastic Film Making Machine for Pelletizing Wire Plates
| application | Sheet, Film | plastic processed | PP, PVC, PPR, EVA, HDPE, PE, PET, PE/PP, TPU PE TPE |
| extruder type | single screw | screw diameter (mm) | 25 mm(Customizable upon request) |
| voltage | 350V, 50HZ | Screw L/D Ratio | Other |
| Screw Material | 38CrMoALA | key selling points | Competitive Price |
| machinery test report | Provided | video outgoing-inspection | Provided |
| core components | Motor, Engine | Screw Design | Single-screw |
| Screw Speed (rpm) | 98 | Weight (KG) | 1400 |
| dimension(l*w*h) | L2260 * W650 * H1400mm | power (kw) | 9 |
| Product name | Laboratory Sheet Extrusion Machine | Main motor | 2.2KW (with helical hard gear high torque click) |
| Traction motor | 0.75kw | Main motor inverter | 2.2KW |
| Traction motor inverter | 0.75KW | Voltage | 380V |
| Screw diameter | 30 (after deep nitriding, plating treatment) | Screw L/D ratio | 1:32 |
| Mode of screen changing | top plug type screen changing (standard) | Width of mold opening | 180mm |
