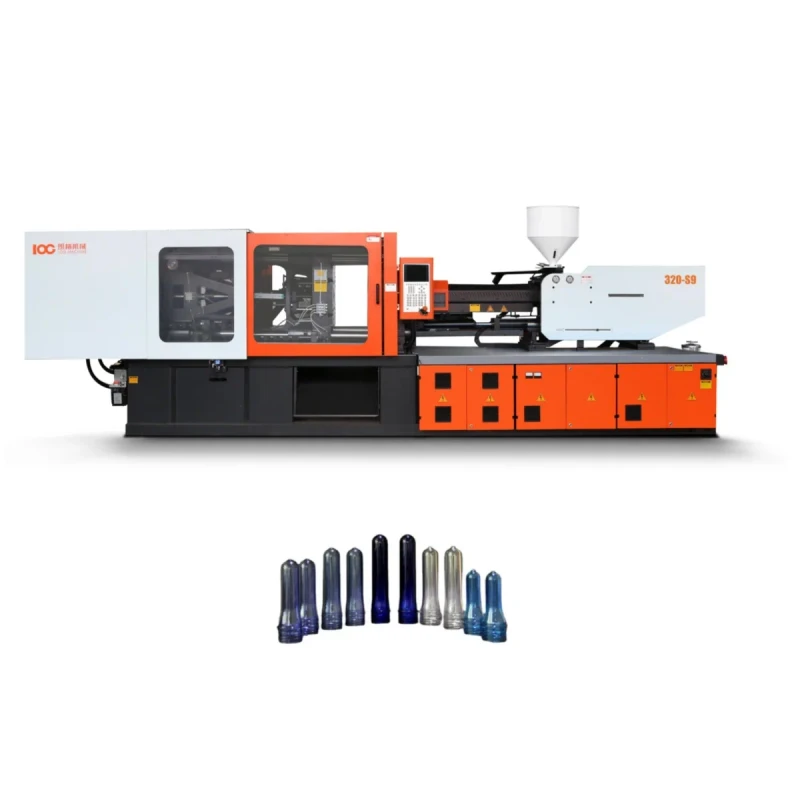

LOG320 High Quality Mini Extruder Injection Molding Machine Plastic Extruders PET Preform Making Machine
LOG320 High Quality Mini Extruder Injection Molding Machine Plastic Extruders PET Preform Making Machine
| machine type | Hydraulic | distance between tie bars | 710X655 MM |
| plastic processed | PC, PP, ABS, PET, PVC | style | Horizontal |
| key selling points | High-Accuracy | ejector number | 6 |
| core components | Motor, Pump, Gear, PLC | machinery test report | Provided |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 51.9 |
| injection weight (g) | 966 | injection rate (g/s) | 330 |
| weight (kg) | 12500 | power (kw) | 64.6 |
| ejector stroke(mm) | 160 | ejector force(kn) | 77 |
| theoretical shot volume(cm³) | 1062 | screw speed (rpm) | 0 - 180 |
| screw diameter (mm) | 65 | Screw L/D Ratio | 22.6 |
| open stroke(mm) | 615 | Product name | servo motor injection molding machine |
| Keyword | hydraulic | Usage | plastic manufacturing |
| After Warranty Service | 1 year | Motor | Servo Energy Saving Motor |
| Market | 2024 new series S9 |
