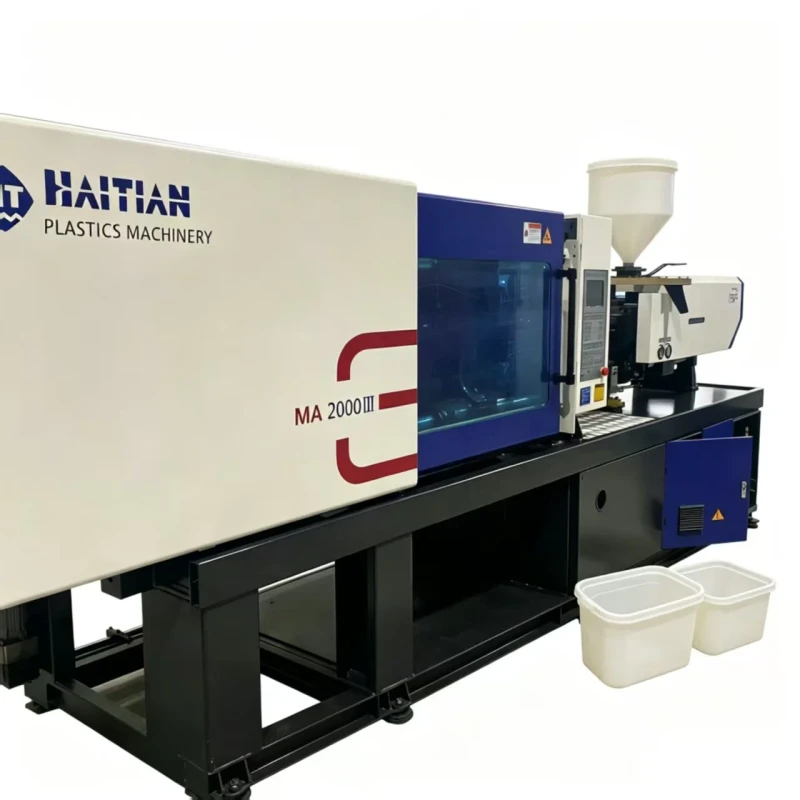

MA 200T Hydraulic Injection Molding Machine Servo Controlled PLC Pump Horizontal Automatic for PET ABS PVC ABS PP PC
MA 200T Hydraulic Injection Molding Machine Servo Controlled PLC Pump Horizontal Automatic for PET ABS PVC ABS PP PC
| machine type | Hydraulic | distance between tie bars | 520x520 mm |
| plastic processed | PP, PC, ABS, PET, PVC | style | Horizontal |
| key selling points | Automatic | ejector number | 5 |
| core components | PLC, MOTOR, pump | machinery test report | Not Available |
| video outgoing-inspection | Provided | Raw Material | plastic |
| plasticizing capacity(g/s) | 18.3 | injection weight (g) | 411 |
| injection rate (g/s) | 141 | weight (kg) | 6300 |
| power (kw) | 22 | mold height(mm) | 200 - 510 mm |
| ejector stroke(mm) | 130 | ejector force(kn) | 5 |
| theoretical shot volume(cm³) | 455 | screw speed (rpm) | 0 - 175 rpm |
| screw diameter (mm) | 50 | Screw L/D Ratio | 20 |
| open stroke(mm) | 470 |
