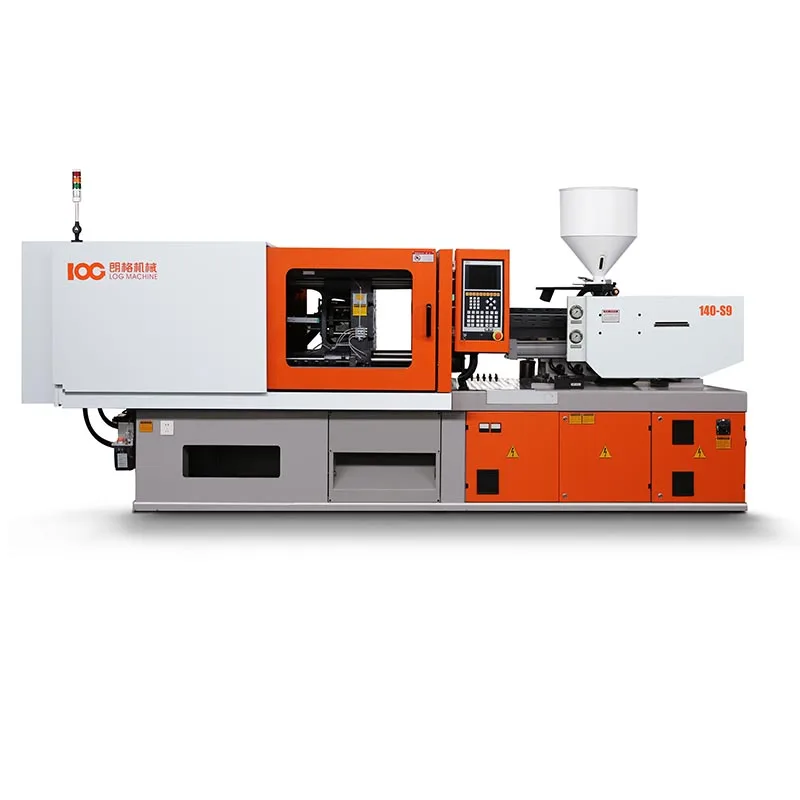

Machine Injection Molding Machine Servo Motor for Plastic Expansion Wall Plug 140ton
Machine Injection Molding Machine Servo Motor for Plastic Expansion Wall Plug 140ton
| machine type | Hydraulic | distance between tie bars | 460X410 mm |
| style | Horizontal | key selling points | Energy Saving |
| ejector number | 5 | core components | Motor, Pump, PLC, Screw |
| machinery test report | Provided | video outgoing-inspection | Provided |
| plasticizing capacity(g/s) | 144 | injection weight (g) | 239 |
| injection rate (g/s) | 144 | weight (kg) | 4300 |
| power (kw) | 23 | mold height(mm) | 150 - 450 mm |
| ejector stroke(mm) | 120 | ejector force(kn) | 42 |
| theoretical shot volume(cm³) | 263 | screw speed (rpm) | 1 - 240 rpm |
| screw diameter (mm) | 42 | Screw L/D Ratio | 20 |
| open stroke(mm) | 380 | Keyword | China LOG 140Ton Plastic Injection Making Machine |
| Function | Two years warranty | Machine Size | 4.6x1.25x2.0m |
| Stock | Have ready stock | Plastic Type | Thermoplastic |
| Automatic | yes |
