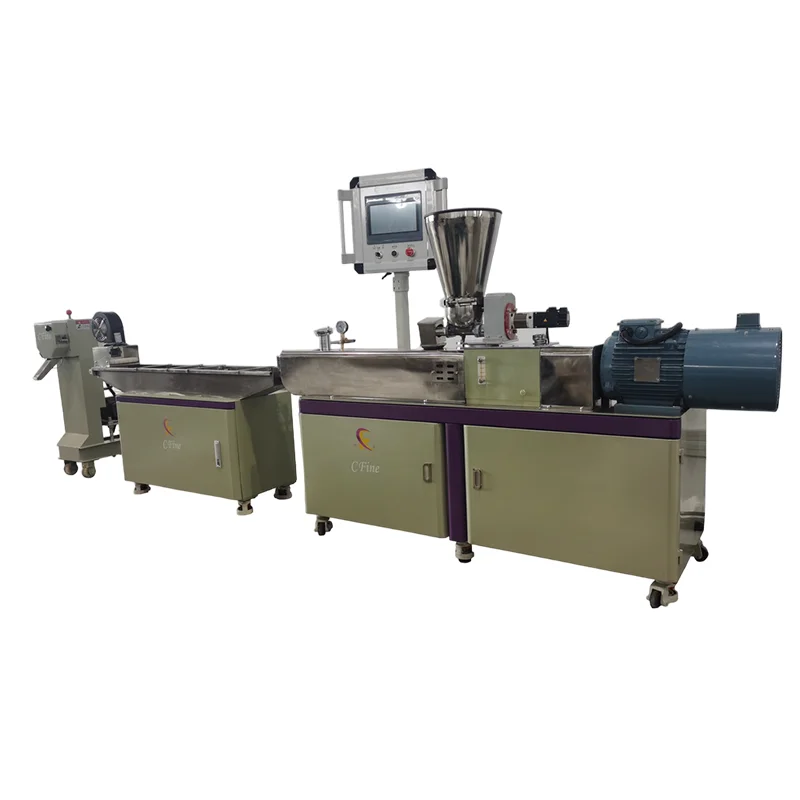

Manufacturer Custom Twin-screw Granulator Machine

Manufacturer Custom Twin-screw Granulator Machine
  • Manufacturer Custom Twin-screw Granulator Machine

    • Manufacturer Custom Twin-screw Granulator Machine

    Request a Quote
    plastic processedHDPE, HDPE/PP, PA, PE/PP, LLDPE, ABS/PP, PPR, PP, FRPP/PVC, PVC, LDPE, ABS, PET, EVA, PC, EPS, PLAvoltage380 V
    screw designdouble screwcore componentsMotor, PLC, Engine, Pump, Gear, Pressure Vessel, Gearbox, Bearing
    machinery test reportProvidedvideo outgoing-inspectionProvided
    output (kg/h)3 - 15 kg/hWeight (KG)3500
    power (kw)4Gauge of the screw rod21.7mm
    Draw Ratio40:1Material of the screw elementW6MO5Cr4V2 high-speed tool steel
    Material of the screw core shaft40CrNiMoAScrew HardnessHRC62~64
    Main Motor PowerTECOMain Screw Speed60~400rpm
    Water-cooling System1.2 meters 304 stainless steel sinkShearing Machine Power1.5kw
    Material of the barrel38CrMoAlA nitriding steel
