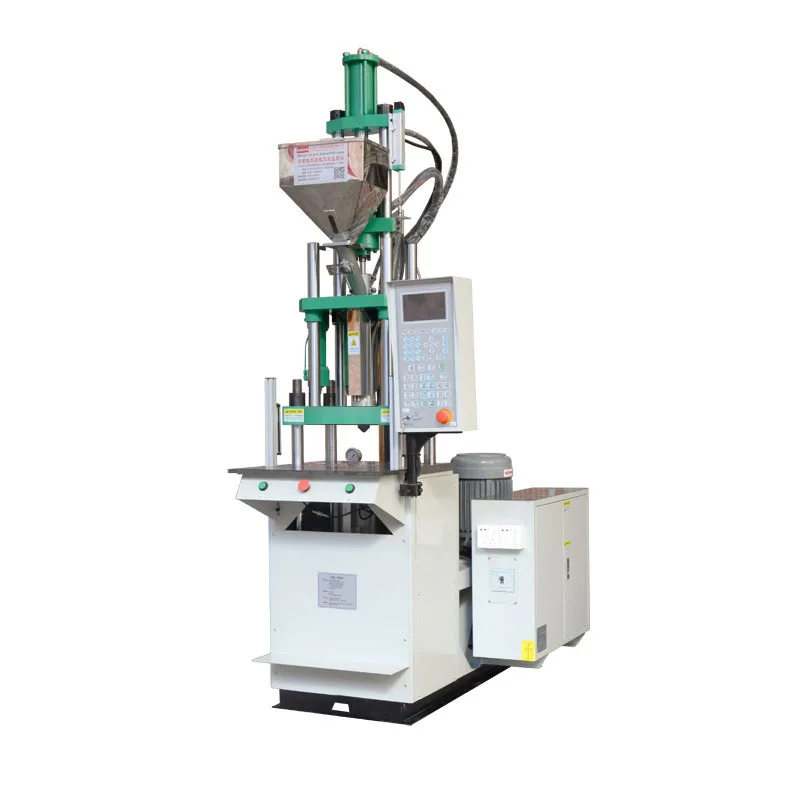

Manvac CE AC DC Plug Vertical Plastic Automatic Injection Molding Machine
Manvac CE AC DC Plug Vertical Plastic Automatic Injection Molding Machine
| machine type | Other | plastic processed | PP, PE, PVC |
| style | VERTICAL | key selling points | Automatic |
| ejector number | Other | core components | Motor, PLC, Screw |
| machinery test report | Provided | video outgoing-inspection | Provided |
| plasticizing capacity(g/s) | 64 | injection weight (g) | 64 |
| injection rate (g/s) | 120 | weight (kg) | 686 |
| power (kw) | 5.2 | mold height(mm) | 60 - 100 |
| ejector stroke(mm) | 2 | ejector force(kn) | 20 |
| theoretical shot volume(cm³) | 65 | screw speed (rpm) | 0 - 255 |
| screw diameter (mm) | 26 | Screw L/D Ratio | 26 |
| open stroke(mm) | 200 | Berrel heating power | 2.2kw |
| Pump motor power | 3.0KW/4.0HP | Pump outpet | 28L/min |
