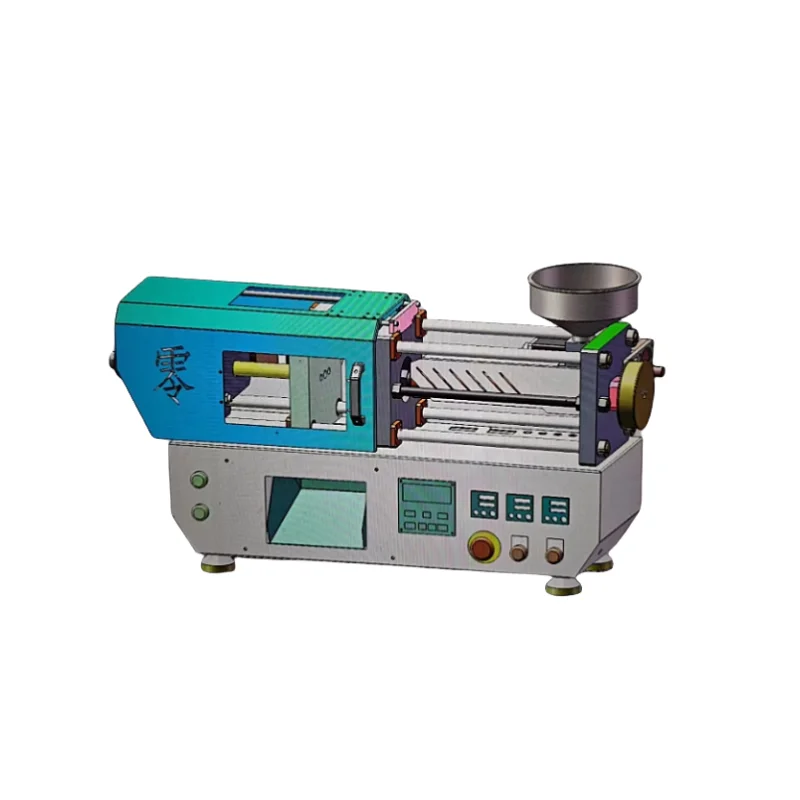

Micro Plastic Making Machines for Plastic Parts Injection 35g 5T Mini Desktop Small Injection Mold Plastic Molding Machine
Micro Plastic Making Machines for Plastic Parts Injection 35g 5T Mini Desktop Small Injection Mold Plastic Molding Machine
| machine type | Electric | distance between tie bars | Other |
| plastic processed | PP, PC, ABS, PET, PVC, FRPP/PVC | style | Horizontal |
| key selling points | Competitive Price | ejector number | Other |
| core components | Motor | machinery test report | Provided |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 50 |
| injection weight (g) | 15 | injection rate (g/s) | 50 |
| weight (kg) | 300 | power (kw) | 3.5 |
| mold height(mm) | 185 - 300 mm | ejector stroke(mm) | 40 |
| ejector force(kn) | 15 | theoretical shot volume(cm³) | 150 |
| screw speed (rpm) | 1 - 1000 rpm | screw diameter (mm) | 25 |
| open stroke(mm) | 110 | Maximum mold size | L185*D300mm |
| Maximum mold thickness | 300mm | Mold opening stroke | 110mm |
| Ejection distance | 40mm | Injection method | hydraulic injection |
| Clamping force | 160kN | Maximum injection volume (PS) | 35g |
| Power | 3.5kw | Heating temperature | 400±1℃ |
| Number of heating sections | 3 |
