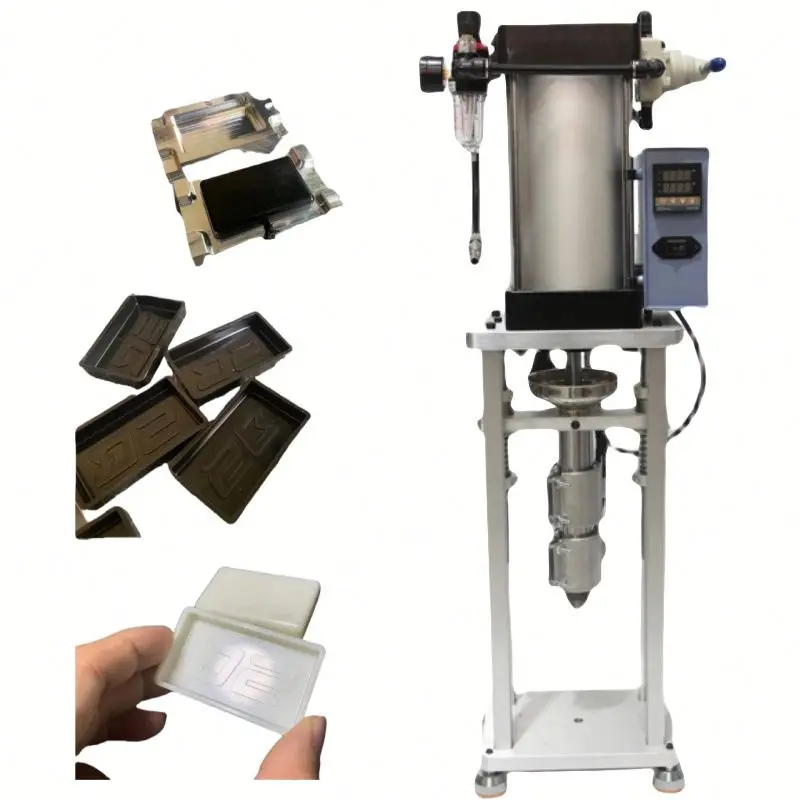

Mini Desktop 50g Plastic Injection Molding Machine Vertical PE Injector for Small Size Laboratory Processes
Mini Desktop 50g Plastic Injection Molding Machine Vertical PE Injector for Small Size Laboratory Processes
| machine type | Electric | distance between tie bars | 110 * 110mm |
| style | VERTICAL | key selling points | High-Accuracy |
| ejector number | 4 | core components | Bearing |
| machinery test report | Provided | video outgoing-inspection | Provided |
| plasticizing capacity(g/s) | 20 | injection weight (g) | 50 |
| injection rate (g/s) | 20 | weight (kg) | 30 |
| power (kw) | 1 | ejector stroke(mm) | 20 |
| ejector force(kn) | 2 | theoretical shot volume(cm³) | 60 |
| screw diameter (mm) | 8 | Screw L/D Ratio | 20 |
| open stroke(mm) | 20 | Product name | Desktop Plastic Injection Molding Machine |
| Function | Plstic Injection Molding Machinery | Dimension | 250*170*1210mm |
| Material | Aluminum alloy+steel | Injection speed | 1- 99 seconds |
| Heating temperature | 0-400 degrees | mold size | 140*200*135mm |
| Air pressure requirement | 0.6mp-0.8mp | Type | Preform Injection |
| Applicable Industries | Machinery Repair Shops |
