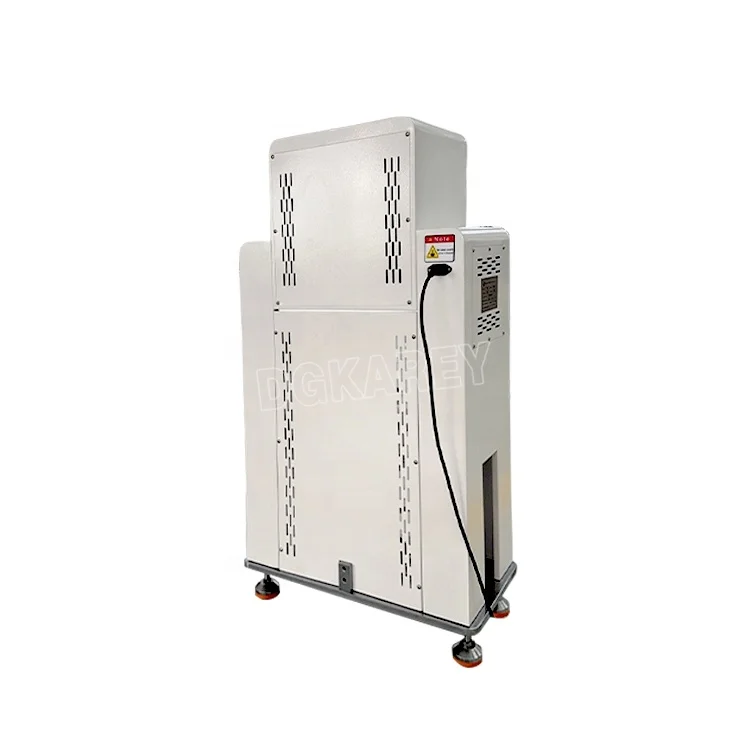

Mini Plastic Injection Molding Machine for Simple Operation Low Cost for R&D and Customization
Mini Plastic Injection Molding Machine for Simple Operation Low Cost for R&D and Customization
| machine type | Electric | distance between tie bars | 110*110 |
| plastic processed | PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, EPS, PA | style | VERTICAL |
| key selling points | Easy To Operate | ejector number | Other |
| core components | Pressure Vessel, Screw | machinery test report | Provided |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 5 |
| injection weight (g) | 20 | injection rate (g/s) | 5 |
| weight (kg) | 35 | power (kw) | 0.8 |
| mold height(mm) | 0.5 - 3 | ejector stroke(mm) | 135 |
| ejector force(kn) | 35 | theoretical shot volume(cm³) | 7 |
| screw speed (rpm) | 10 - 60 | screw diameter (mm) | 20 |
| Screw L/D Ratio | 20 | open stroke(mm) | 135 |
| Product name | Mini Plastic Injection Molding Machine | Keyword | Small Manual Injection Molding Machine |
| Application | Inserting Plastic Products | Temperature range | RT-450℃(±3℃) |
| Mode | Pneumatic Press | Heating cavity size | 20*110mm |
| Maximum size of die | (120 x 120 x 80) mm | Machine size | 23*45*63cm |
| Machine weight | 55KG | Power | 220V/110V 400W |
