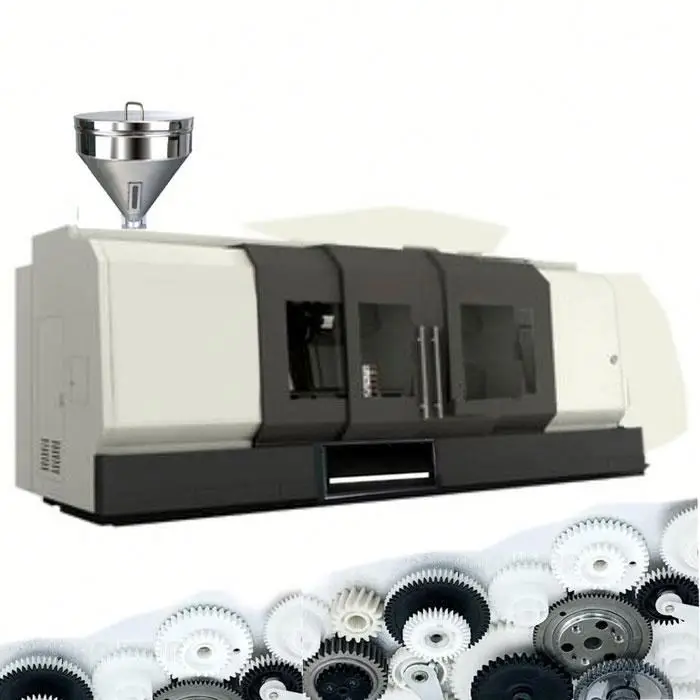

Mini Plastic Injection Molding Machine Small Injection Molding Machine
Mini Plastic Injection Molding Machine Small Injection Molding Machine
| machine type | Electric | distance between tie bars | 130*130 |
| plastic processed | PP, PC, ABS, PET, PVC, PE, PE/PP | style | Horizontal |
| key selling points | Multifunctional | ejector number | 4 |
| plasticizing capacity(g/s) | 275 | injection weight (g) | 30 g |
| injection rate (g/s) | 220 g/s | weight (kg) | 40 |
| power (kw) | 17.25 kW | mold height(mm) | 240 - 670 mm |
| ejector stroke(mm) | 30 mm | ejector force(kn) | 30 kN |
| theoretical shot volume(cm³) | 40 cm³ | screw speed (rpm) | 1 - 220 |
| screw diameter (mm) | 16 mm | Screw L/D Ratio | 20 |
| open stroke(mm) | 70 mm | Structure | Horizontal Injection Molding Machine |
| Usage: | Electric Parts | Machiner Dimensions(mm) | 6.3m*1.9m*2.4m |
| Opening Stroke | 700mm |
