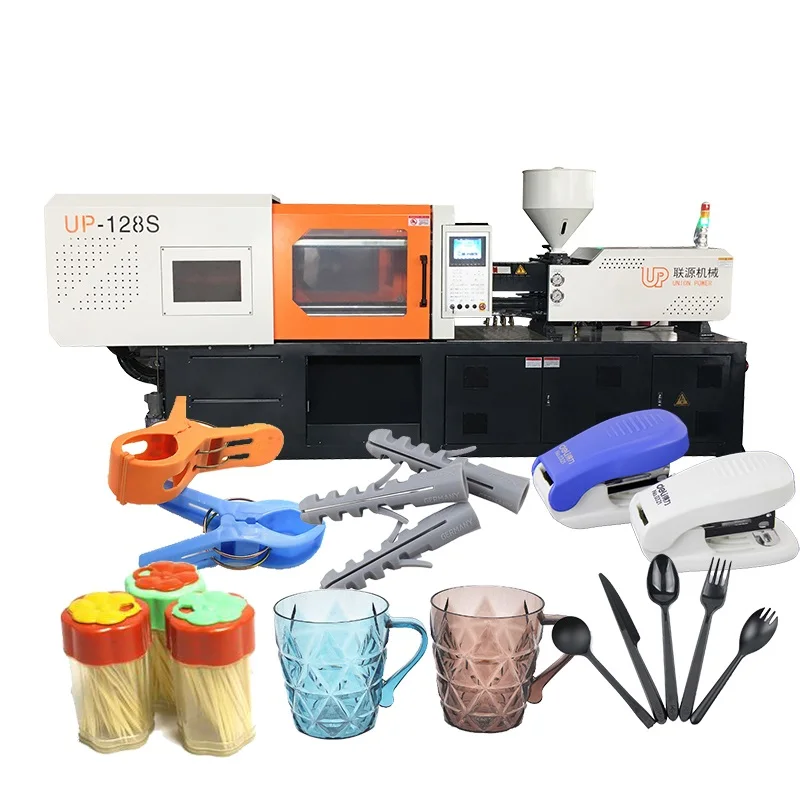

Mini Plastic Injection Molding Machine Small Injection Molding Machine
Mini Plastic Injection Molding Machine Small Injection Molding Machine
| machine type | Hydraulic | distance between tie bars | 420x380mm |
| plastic processed | HDPE/PP, ABS/PP, PE/PP | style | Horizontal |
| key selling points | Energy Saving | core components | Bearing, Motor, Pump, Gear, PLC, Other, Pressure Vessel, Engine, Gearbox, Screw |
| machinery test report | Provided | video outgoing-inspection | Provided |
| injection weight (g) | 230 g | injection rate (g/s) | 215 g/s |
| weight (kg) | 3200 kg | power (kw) | 11 kW |
| ejector stroke(mm) | 100 mm | ejector force(kn) | 38 kN |
| theoretical shot volume(cm³) | 256 cm³ | screw diameter (mm) | 42 mm |
| open stroke(mm) | 360 mm | Opening Stroke | 350mm |
| Screw Diameter | 42mm | Screw speed | 200rmp |
| Max mold height | 450mm | Min mold height | 135mm |
| Pump pressure | 16Mpa | Machine Dimension | 4.2x1.2x1.8m |
| Machine Weight | 3.2T | Power(W) | 11KW |
| Injection Weight | 230g |
