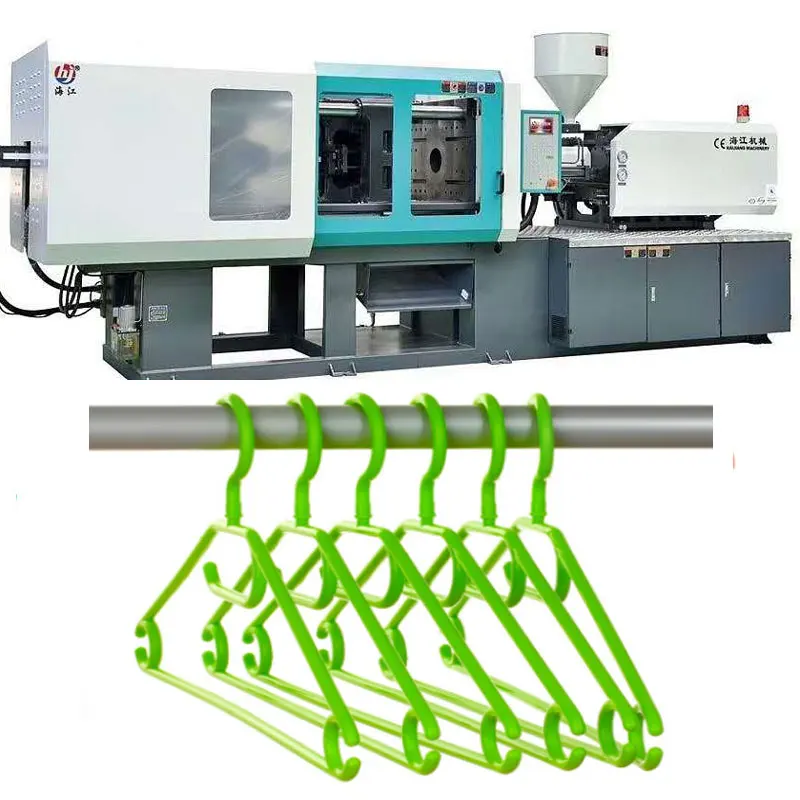

Mini Plastic Injection Molding Machine
Mini Plastic Injection Molding Machine
| machine type | Hydraulic | distance between tie bars | 530 |
| plastic processed | PP, PE, ABS/PP, PE/PP | style | Horizontal |
| key selling points | Easy To Operate | ejector number | 9 |
| core components | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox | machinery test report | Provided |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 179 |
| injection weight (g) | 534 g | injection rate (g/s) | 179 g/s |
| weight (kg) | 510 kg | power (kw) | 18.5 kW |
| mold height(mm) | 200 - 530 mm | ejector stroke(mm) | 165 mm |
| ejector force(kn) | 70 kN | theoretical shot volume(cm³) | 593 cm³ |
| screw speed (rpm) | 1 - 180 rpm | screw diameter (mm) | 55 mm |
| Screw L/D Ratio | 20 | open stroke(mm) | 490 mm |
| After-sales Service Provided | Engineers available to service machinery overseas | Injection Weight | 534g |
| Injection Rate | 0-180rpm | Opening Stroke | 490mm |
| Power(W) | 18.5 | Plastic Type | thermoplastic |
| Automatic | YES |
