Professional Manufacturer of Plastic Processing Machinery

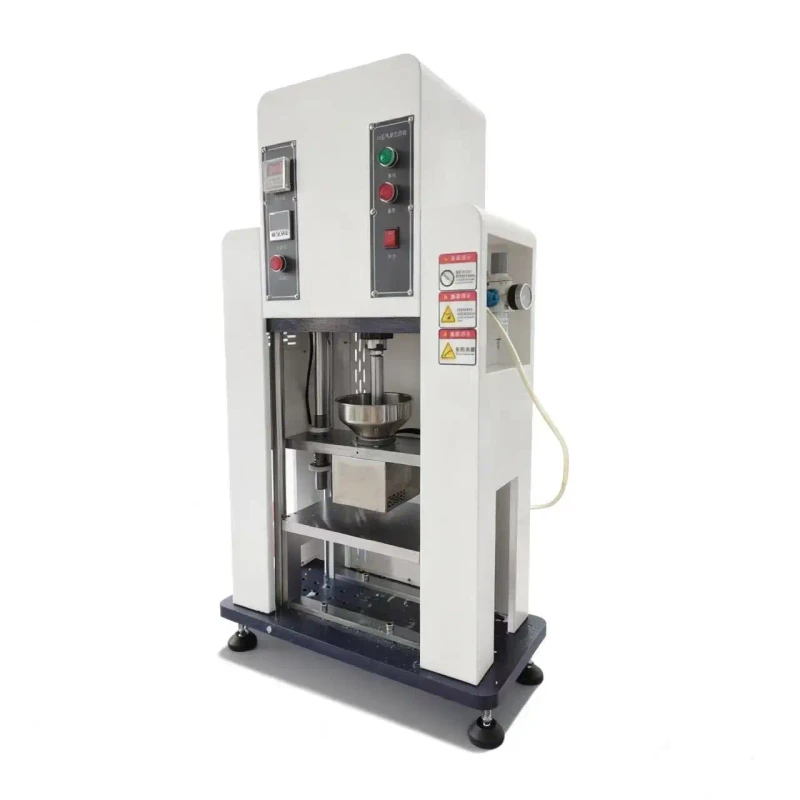

Mini Vertical PVC Plastic Injection Molding Machine
Mini Vertical PVC Plastic Injection Molding Machine
| machine type | Electric | distance between tie bars | 160MM |
| plastic processed | PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, EPS, PA, PE | style | VERTICAL |
| key selling points | Competitive Price | ejector number | 2 |
| core components | Motor, Engine | machinery test report | Provided |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 35 |
| injection weight (g) | 45 | injection rate (g/s) | 35 |
| weight (kg) | 600 | power (kw) | 1 |
| ejector stroke(mm) | 150 | ejector force(kn) | 13 |
| theoretical shot volume(cm³) | 56 | screw speed (rpm) | 1 - 200 rpm |
| screw diameter (mm) | 25 | open stroke(mm) | 150 |
| Product name | Mini Vertical PVC Plastic Injection Molding Machine | Automatic | Yes |
| Plastic Type | Thermoplastic | Opening Stroke | 160 |
| Application | Plastic | temperature range | RT---450℃(±3℃)[Max450℃] |
| Plunger diameter [mm] | 25mm(Can be customized) | The maximum compression stroke | 150mm |
| Maximum injection | 20g (Can be customized) | Injection time | 0-9999s[can set] |
Get in Touch
