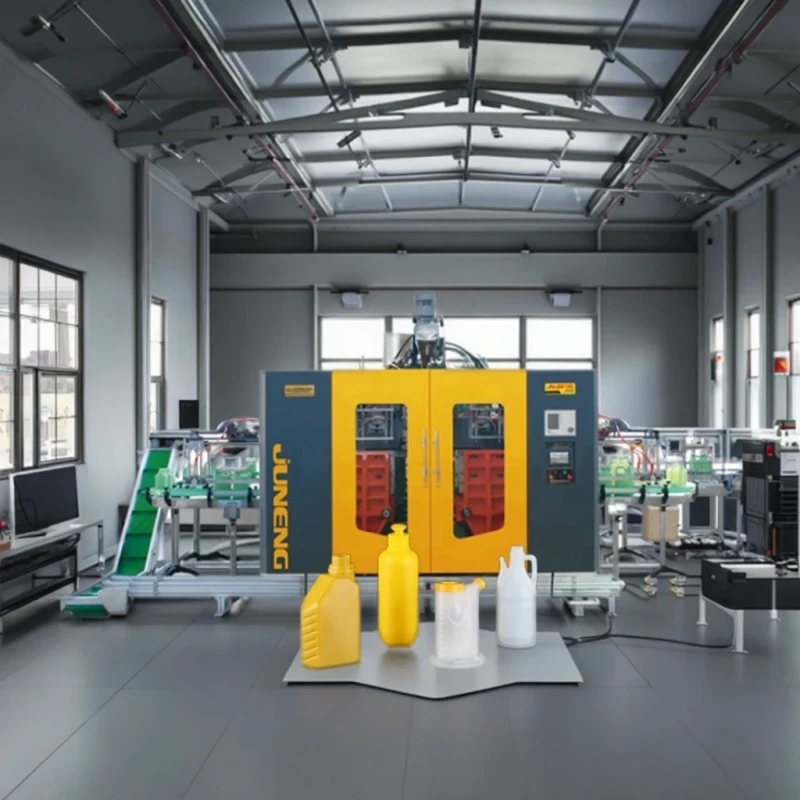

Multi-layers Extrusion Blow Molding Machine 2S2L-DT with Multilayer Co-extrusion Diehead
Multi-layers Extrusion Blow Molding Machine 2S2L-DT with Multilayer Co-extrusion Diehead
| Clamping Force (kN) | 38 | voltage | 380 V |
| automation | Automatic | No. of Screw Heating Zone | 3 |
| plc brand | Siemens | machinery test report | Provided |
| video outgoing-inspection | Provided | output (kg/h) | 80 |
| power (kw) | 15 | weight (t) | 4.5 |
| dimension(l*w*h) | 3*2*2.1 | Screw L/D Ratio | 25 |
| screw diameter (mm) | 60 | screw heating power(kw) | 6 |
| mold platen size(width)(mm) | 300 | mold platen size(height)(mm) | 320 |
| air pressure(mpa) | 0.8 | air comsumption(m³/min) | 0.4 |
| die head heating power(kw) | 3.5 |
