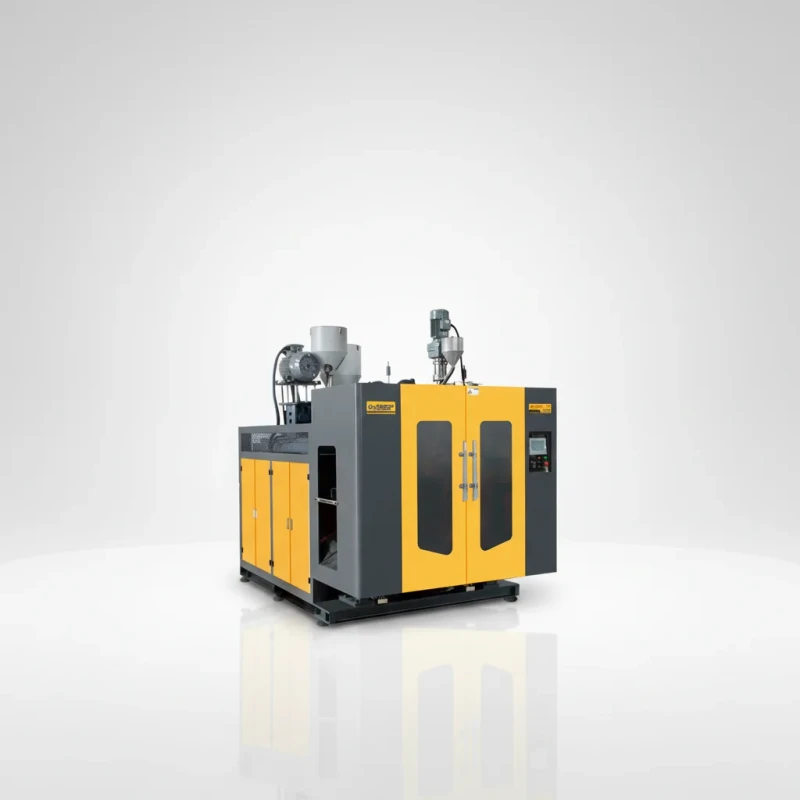

Multi-layers Extrusion Blow Molding Machine JN-2S5L-DT Suitable for Multi-material Co-melting
Multi-layers Extrusion Blow Molding Machine JN-2S5L-DT Suitable for Multi-material Co-melting
| Clamping Force (kN) | 68 | voltage | 380 V |
| automation | Automatic | No. of Screw Heating Zone | 3 |
| plc brand | Siemens | machinery test report | Provided |
| video outgoing-inspection | Provided | output (kg/h) | 90 |
| power (kw) | 22 | weight (t) | 10.2 |
| dimension(l*w*h) | 3.5*3*2.6 | Screw L/D Ratio | 25 |
| screw diameter (mm) | 70 | screw heating power(kw) | 7 |
| mold platen size(width)(mm) | 370 | mold platen size(height)(mm) | 390 |
| air pressure(mpa) | 0.8 | air comsumption(m³/min) | 0.6 |
| die head heating power(kw) | 4.3 |
