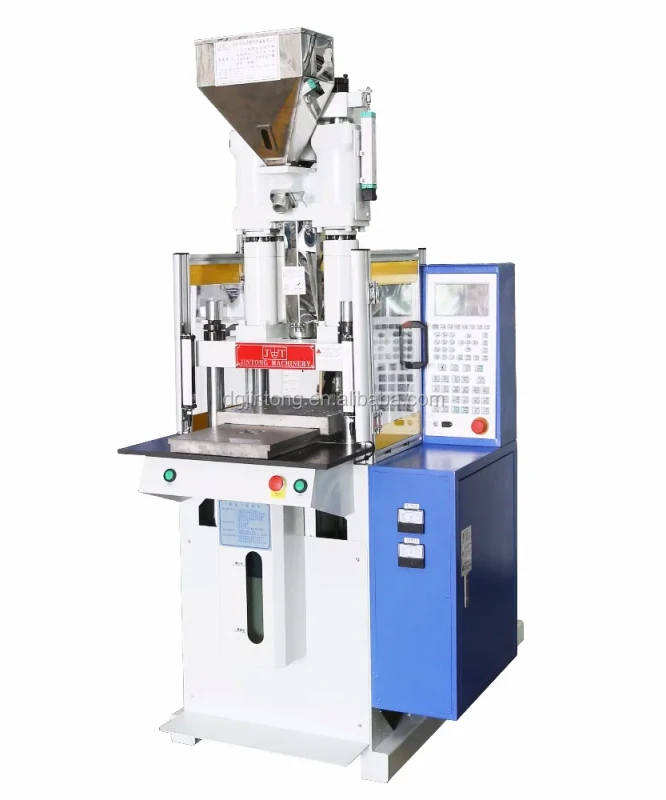

New Automatic Vertical Thermoplastic Injection Molding Machine 45T

New Automatic Vertical Thermoplastic Injection Molding Machine 45T
  • New Automatic Vertical Thermoplastic Injection Molding Machine 45T

    • New Automatic Vertical Thermoplastic Injection Molding Machine 45T

    Request a Quote
    machine typeHydraulicdistance between tie bars410mm
    plastic processedPP, PC, ABS, PVC, PA, PEstyleVERTICAL
    key selling pointsCompetitive Pricecore componentsBearing, Motor, Pump, PLC, Pressure Vessel, Screw
    machinery test reportProvidedvideo outgoing-inspectionProvided
    injection weight (g)105 ginjection rate (g/s)71 g/s
    weight (kg)1500power (kw)9 kW
    ejector stroke(mm)45 mmejector force(kn)13 kN
    theoretical shot volume(cm³)115 cm³screw diameter (mm)35 mm
    open stroke(mm)400 mmOpening Stroke180mm
    After-sales Service ProvidedEngineers available to service machinery overseasscrew diameter20mm 30mm 35mm
    screw stroke120mmProduct nameNew Automatic Vertical Thermoplastic injection molding machineJTT-450D
    opening force6.5Tplaten size580*430mm
    max daylight410/350mmmin old height210/150mm
    ejector force1.3T
