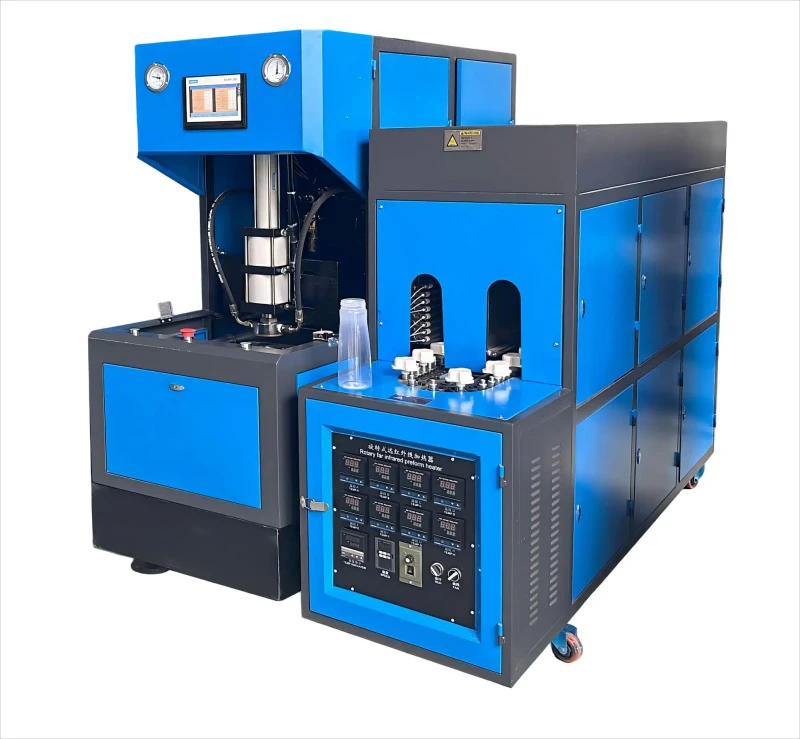

New China Small Semi Automatic PLC Stretch Blow Moulding Machine for PET Bottles

New China Small Semi Automatic PLC Stretch Blow Moulding Machine for PET Bottles
  • New China Small Semi Automatic PLC Stretch Blow Moulding Machine for PET Bottles

    • New China Small Semi Automatic PLC Stretch Blow Moulding Machine for PET Bottles

    Request a Quote
    plastic processedPETautomationSemi-Automatic
    voltage380/220V , 50/60HZ, 3 Phrasemachinery test reportProvided
    video outgoing-inspectionProvidedcore componentsPLC
    key selling pointsCompetitive Priceneck diameter(mm)28
    max.bottle diameter(mm)120clamping force (kn)65
    weight (kg)600max.bottle height(mm)350
    dimension(l*w*h)1600*600*1610mmTraitThe machine is small with low investment, easy and safe for operating.
    Delivery timeThe machine and mould will be made within 15 daysProduct namePET Bottle Blowing Machine
    Suitable bottle100-2000ml BottleTheoretical output600-900PCS/H
    Max.mould plate Dimenstion(L x W)400x460mmMax.mould thickness300mm
    Blow Moulding TypeStretch Blow MouldingConditionNew
    ApplicationBottle
