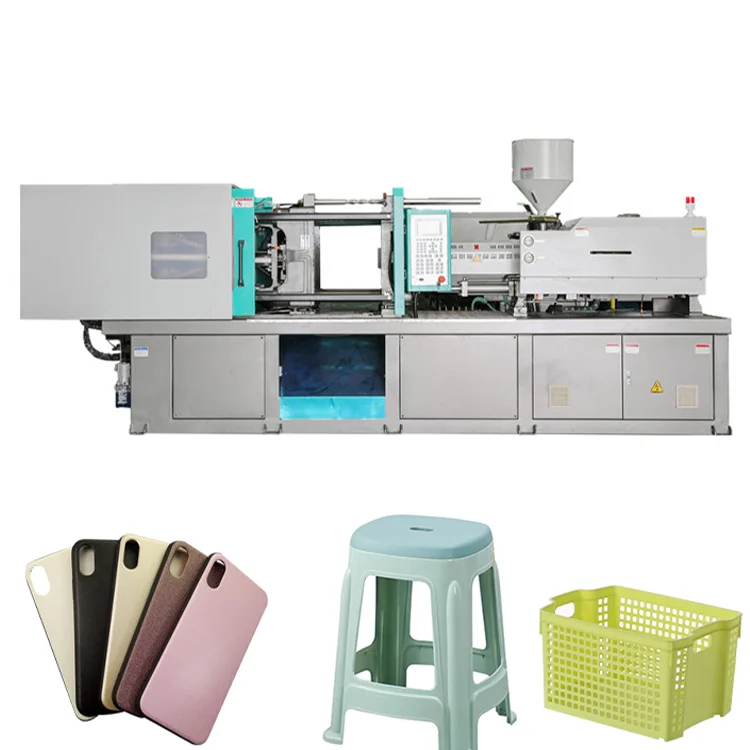

Ningbo Fuhong CE Small min 50ton 500kn pp Plastic Injection Molding Machine with Servo Motor
Ningbo Fuhong CE Small min 50ton 500kn pp Plastic Injection Molding Machine with Servo Motor
| machine type | Hydraulic | distance between tie bars | 280mm*260mm |
| style | Horizontal | key selling points | Energy Saving |
| core components | Motor | machinery test report | Provided |
| video outgoing-inspection | Provided | injection weight (g) | 76.4 g |
| injection rate (g/s) | 55 g/s | weight (kg) | 2200 |
| power (kw) | 5.5 kW | ejector stroke(mm) | 65 mm |
| ejector force(kn) | 20 kN | theoretical shot volume(cm³) | 82 cm³ |
| screw diameter (mm) | 32 mm | open stroke(mm) | 260 mm |
| After-sales Service Provided | Engineers available to service machinery overseas | Plastic Type | Thermoplastic |
| Automatic | yes | Screw Diameter | 28mm-32mm |
| Injection pressure | 133mpa-173mpa | Space between Tie Bar | 280mm*260mm |
| Mould thickness | 100mm-300mm | Ejector stroke | 65mm |
| Ejector force | 20kn | System pressure | 14mpa |
