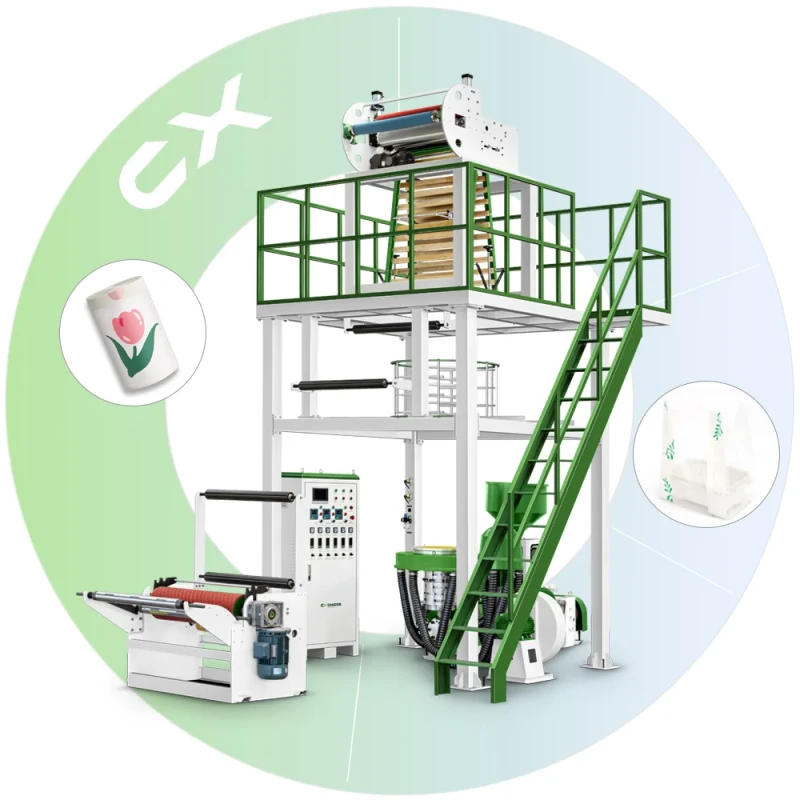

PE Plastic Film Extruder Machine Shrink Plastic Roll Film Making Blowing Machine Green House Film Blowing Machine
PE Plastic Film Extruder Machine Shrink Plastic Roll Film Making Blowing Machine Green House Film Blowing Machine
| plastic processed | HDPE, Polystyrene, HDPE/PP, LLDPE | number of layers | Single-Layer |
| output (kg/h) | 50 - 100 | voltage | 380V 50Hz 3Phase |
| core components | Gearbox, Motor, Die head, Fequency converter, Air Blower | machinery test report | Provided |
| video outgoing-inspection | Provided | key selling points | Energy Saving |
| weight (kg) | 3500 | screw diameter (mm) | 50 |
| die size(mm) | 60 - 250 mm | dimension(l*w*h) | 5.5*3.5*4.5m |
| After-sales Service Provided | Engineers | Material | LLDPE LDPE HDPE |
| Key words | Film Blowing Machine Extruder | Usage | Packing Bags |
| Screw L/D Ratio | 30:1 | Main motor | 15/18.5/22/30kw |
| Die head | 60/80/100/120/150/220/250 | Take-up Speed | 10-110m/min |
| Max.Output | 100kg/h | Max. film width | 1200mm |
