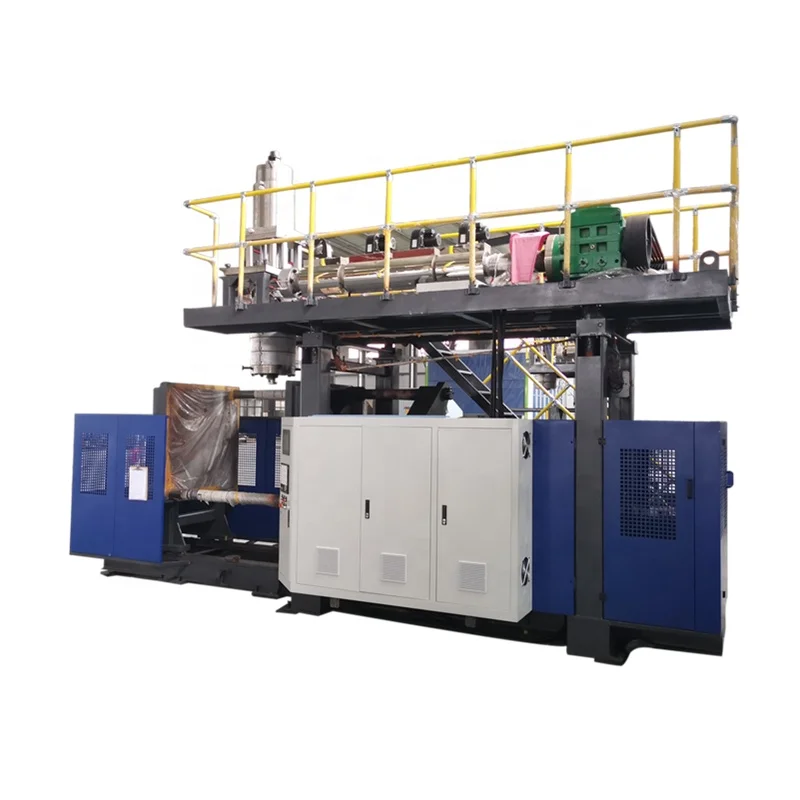

PE PP Plastic Traffic Barrier Auto Parts for 60L 70L 80L 90L MAX100L Extrusion Blowing Molding Machine
PE PP Plastic Traffic Barrier Auto Parts for 60L 70L 80L 90L MAX100L Extrusion Blowing Molding Machine
| plastic processed | PE, PP | Clamping Force (kN) | 440 |
| voltage | 380V/3PH/50HZ | automation | Automatic |
| No. of Screw Heating Zone | 4 | plc brand | Mitsubishi |
| core components | PLC, Motor, Gearbox | key selling points | Easy To Operate |
| machinery test report | Provided | video outgoing-inspection | Provided |
| output (kg/h) | 180 | power (kw) | 60 |
| weight (t) | 15 | dimension(l*w*h) | 5.9X3.8X4.6 |
| Screw L/D Ratio | 24 | screw diameter (mm) | 100 |
| screw heating power(kw) | 22.4 | extruder motor power(kw) | 55 |
| mold platen size(width)(mm) | 1200 | mold platen size(height)(mm) | 1200 |
| air pressure(mpa) | 0.8 | air comsumption(m³/min) | 1.8 |
| die head heating power(kw) | 35 | Blow Moulding Type | Extrusion Blow Moulding |
| Name | oil package liquid level line bottle | Type | Hydraulic |
| Product name | Blow molding machine | Material | PP/PE/ABS etc. |
| Certification | CE ISO |
