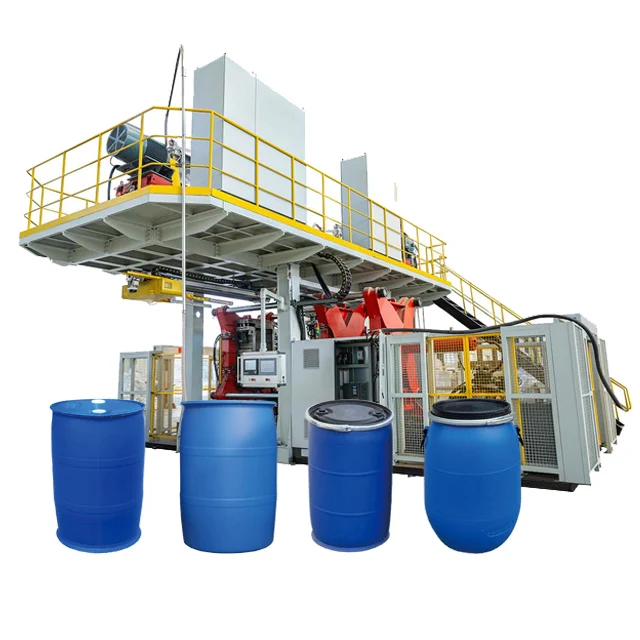

Plastic Blow Molding Machine 55 Gallon Barrel 200l Plastic Drum Making Machine

Plastic Blow Molding Machine 55 Gallon Barrel 200l Plastic Drum Making Machine
  • Plastic Blow Molding Machine 55 Gallon Barrel 200l Plastic Drum Making Machine

    • Plastic Blow Molding Machine 55 Gallon Barrel 200l Plastic Drum Making Machine

    Request a Quote
    plastic processedPP, HDPE, PEClamping Force (kN)1200
    voltageCustomizedautomationAutomatic
    No. of Screw Heating Zone5plc brandSiemens
    core componentsPLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pumpkey selling pointsHigh Productivity
    machinery test reportProvidedvideo outgoing-inspectionProvided
    output (kg/h)350 kg/hpower (kw)360
    weight (t)38dimension(l*w*h)8.2*3.5*5.5m
    Screw L/D Ratio30screw diameter (mm)100 mm
    screw heating power(kw)60 kWextruder motor power(kw)150 kW
    mold platen size(width)(mm)1400 mmmold platen size(height)(mm)1600 mm
    air pressure(mpa)0.8 MPaair comsumption(m³/min)0.5 m³/min
    die head heating power(kw)42 kWKey wordsAutomatic Extrusion Blow Moulding Machine
    Blow Molding TypeExtrusion Blowing Mold MachineStationSingle Sation
    After-sales Service ProvidedEngineers available to service machinery overseasMaterialHDPE PE PP
    Product namePlastic Blow Molding MachineAdvantagesServo Motor Energy Save
    After-sales Service Provided 2TrainingRange100L-250L
    AutomaticTouch Screen
