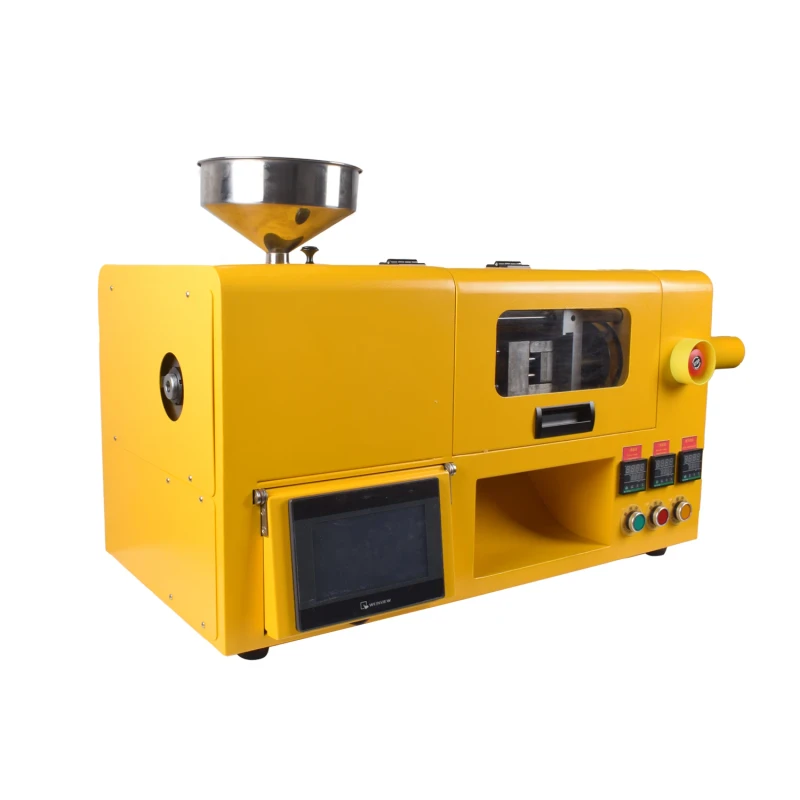

Plastic Injection Molding Machine 1500W Mini PVC ABS Products Injection Molding Machine
Plastic Injection Molding Machine 1500W Mini PVC ABS Products Injection Molding Machine
| machine type | Other | distance between tie bars | Other |
| plastic processed | PP, PC, ABS, PVC, ABS/PP, PE/PP | style | Horizontal |
| key selling points | Automatic | ejector number | Other |
| core components | Motor, PLC, Other | machinery test report | Provided |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 35 |
| injection weight (g) | 35 | injection rate (g/s) | 35 |
| weight (kg) | 120 | power (kw) | 1.5 |
| mold height(mm) | 5 - 100 | ejector stroke(mm) | 150 |
| ejector force(kn) | 3000 | theoretical shot volume(cm³) | 30 |
| screw diameter (mm) | 30 | open stroke(mm) | 150 |
| Region of Country: | China | Max heating temperature: | 450° |
| Max Glue dosage: | 35G | Lock mold screw diameter: | 30mm |
| Locking mold motor power: | 1500W | Locking mold force: | 3000kg |
| Locking mold travel: | 150mm | Maximum size of mold: | 100mm*100mm |
| Column internal dimensions: | 120mm |
