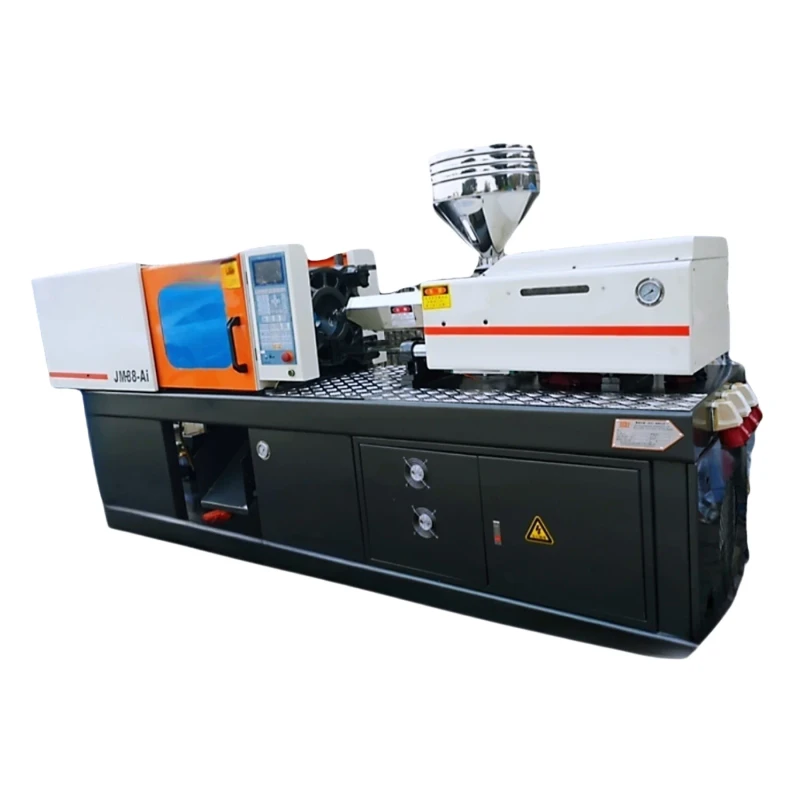

Plastic Injection Molding Machine JM88 Tons Of Second hand Injection Molding Machine Plastic Molding Machinery
Plastic Injection Molding Machine JM88 Tons Of Second hand Injection Molding Machine Plastic Molding Machinery
| machine type | Hydraulic, Electric, Mechanical | distance between tie bars | 360X360mm |
| plastic processed | PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, HDPE, MLLDPE, EPS, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PP | style | VERTICAL |
| key selling points | High Productivity | ejector number | 5 |
| core components | Motor, Pump, Gear, PLC | machinery test report | Not Available |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 9.9 |
| injection weight (g) | 124 g | injection rate (g/s) | 108 g/s |
| weight (kg) | 3270 kg | power (kw) | 14 kW |
| mold height(mm) | 125 - 380 mm | ejector stroke(mm) | 120 mm |
| ejector force(kn) | 35 kN | theoretical shot volume(cm³) | 136 cm³ |
| screw speed (rpm) | 0 - 245 rpm | screw diameter (mm) | 31 mm |
| Screw L/D Ratio | 24.4 | open stroke(mm) | 340 mm |
| Product name | Plastic Injection Moulding Machine | After-sales Service Provided | Video Technical Support |
| Keyword | Plastic Machinery Equipment | Function | Plstic Injection Molding Machinery |
