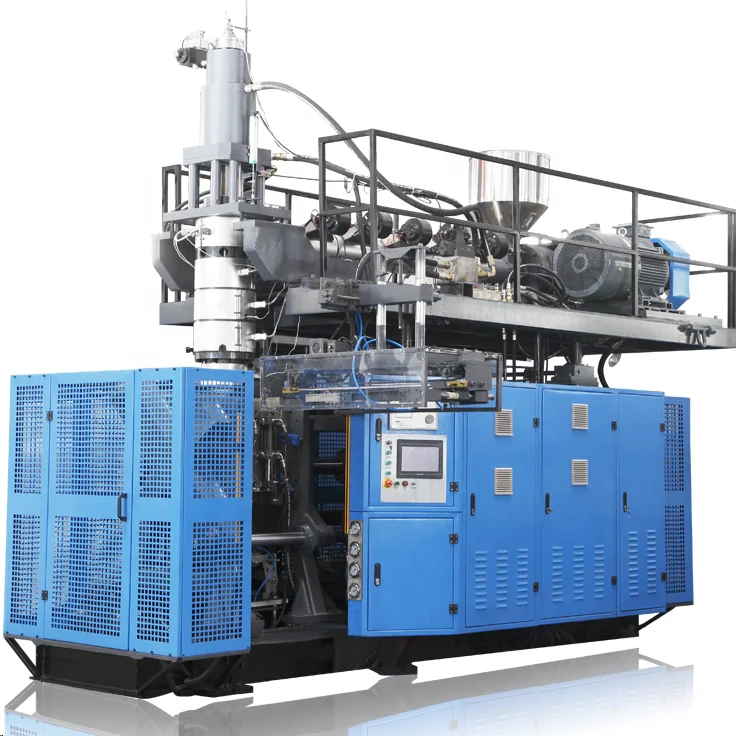

Plastic Large Size Barrels Making Machine Blow Molding Machine
Plastic Large Size Barrels Making Machine Blow Molding Machine
| plastic processed | PP, HDPE, ABS, PE, PP, PE, HDPE | Clamping Force (kN) | 65 |
| voltage | 380V/50HZ | automation | Automatic |
| core components | PLC, Gearbox, Motor, Pump | key selling points | Easy To Operate |
| machinery test report | Provided | video outgoing-inspection | Provided |
| output (kg/h) | 150 kg/h | power (kw) | 90 |
| weight (t) | 11 | dimension(l*w*h) | 5.2*2.9*4.6 M |
| screw diameter (mm) | 90 mm | screw heating power(kw) | 18 kW |
| extruder motor power(kw) | 45 kW | mold platen size(width)(mm) | 900 mm |
| mold platen size(height)(mm) | 900 mm | air pressure(mpa) | 1 MPa |
| air comsumption(m³/min) | 1 m³/min | die head heating power(kw) | 10 kW |
| Blow Moulding Type | Extrusion Blow Moulding | Max. product volume | 60L |
| Dry cycle | 450 PC/H | Name | Blow Molding Machine |
| Color | Customized | Application: | Plastic Middle Size Barrels |
| Weight | 13.5 TON | Power(W) | 45 KW |
| Condition | New | Warranty of core components | 1 Year |
| Application | Bottle | Applicable Industries | Manufacturing Plant, Food & Beverage Factory |
| Showroom Location | Egypt, Saudi Arabia | Accumulator Capacity(L) | 6.6 |
